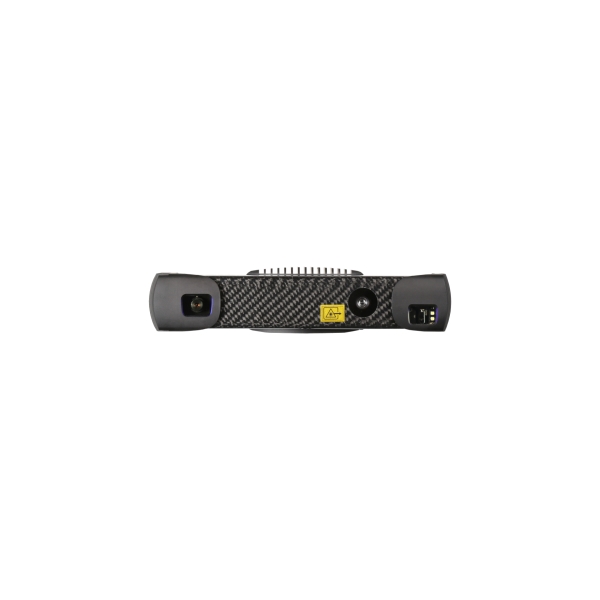

MotionCam-3D Color S+

3D sensing technology: Parallel Structured Light

Output data 3D points (x y z), Normals (x y z), Depth Map (z), Color Image, Texture (grayscale/RGB), Confidence (float)

Scanning range (near - far) 630 - 1574 mm

Optimal scanning distance (sweet spot) 907 mm

Scanning area (sweet spot) 828 x 610 mm

Operation Mode:	Static (Scanner mode)			Dynamic (Camera Mode)
Scanning Distance	Near	Sweet	Far	Near	Sweet	Far
Relative distance accuracy (‰)	1.60	1.20	1.76	1.35	1.58	2.49
Global planarity (mm)	0.36	0.55	1.28	0.62	0.62	1.48
Local planarity (mm)	0.16	0.18	0.44	0.19	0.30	0.76
Temporal noise (mm)	0.06	0.07	0.18	0.04	0.07	0.23
Point-to-point distance (mm) at 2 Mpix	0.36	0.52	0.91	0.36	0.52	0.91
Point-to-point distance (mm) at 0.9 Mpix				0.54	0.78	1.36
