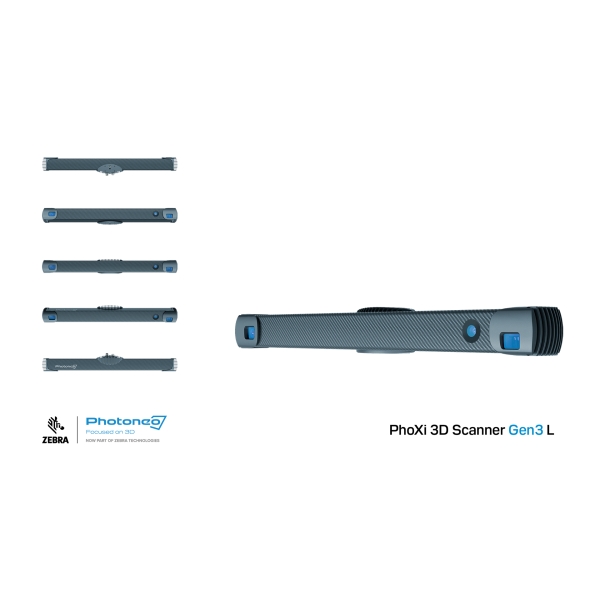

PhoXi 3D Scanner L Gen3

3D sensing technology: Structured Light

Output data 3D points (x y z), Normals (x y z), Depth Map (z), Color Image, Texture (grayscale/RGB), Confidence (float)

Depth map resolution 5.1 Mpix (2472x2064)

Color image resolution Up to 8 Mpix

Scanning range (near - far) 1680 - 3780 mm

Optimal scanning distance (sweet spot) 2326 mm

Scanning area (sweet spot) 1954 x 1459 mm

Scanning time 250 - 3000 ms

Dimensions 964 x 68 x 86 mm

Baseline 850.0 mm

Weight 1200 g

Temperature working range Full: 0 - 40 degrees (Optimal: 22 - 25 degrees)

Projection unit laser color Blue or Red depending on model

Power PoE or 24V

Processing unit NVIDIA Jetson TX2

Data connection 1 Gbit Ethernet

GIGE Vision compatible
