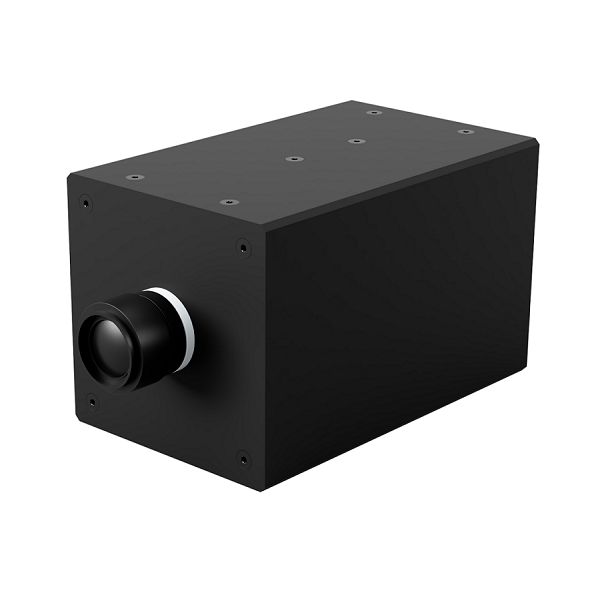

HSG-BlackIndustry is a compact and rugged hyperspectral camera with linear sensor (line-scan push-broom type) developed for machine vision and in-line applications and OEM integration in the visble and near infrared (VNIR) 500 - 1000 nm.
Thanks to its high speed (540Hz full-frame / 1KHz ROI) this hyperspectral sensor is suitable for high speed conveyor belts.
This camera is the most valued and implemented s OEM in general artificial vision applications and systems.
In our Polyespectral Imaging Application you can learn more on this technology, the features and advantages.
Key features of the VNIR hyperspectral imaging camera HSG-BlackIndustry:
- spectral range: 500 - 1000 nm (optional 400 - 800 nm)
- spectral bands: 100
- spectral resolution: 5 nm
- spectral sampling: 5 nm
- spatial resolution: 960 px
- frame rate: 540 Hz (full frame) / up to1 KHz (ROI)
- lens thread: C-mount
HSG-Black cameras also have free and continuously updated hyperspectral imaging processing software: HSG-BlackStudio.
In addition to data acquisition and evaluation of data quality, the BlackStudio integrates analysis functions that can be used for data classification using ROI. So it is not neccessary to buy expensive software packages for this purpose.
Technical specifications of the HSG-BlackIndustry:
Find them above in the tab "Download"
Typical applications of the hyperspectral imaging systems in the visible-NIR, and recommended devices:
| BlackIndustry | BlackBullet | BlackBox | BlackBird V2 | BlackMobile | HERA-VisNir |
| Drones / RPAS / UAVs | | | | x | | |
| Handheld | | | | | x | |
| In-line applications | x | | | | | |
| Machine (artificial) vision | x | | | | | |
| General lab use | | x | x | | | x |
| High sensitivity / low light | | | | | x | x |
| Forensics | | x | x | | | x |
| Vegetation, agriculture | | x | | x | x | x |
| Microscopy - fluorescence imaging | | | | | | x |
| Solar photovoltaic - perovskite | | | | | | |
| Biology, biomedicine, pharma | x | | x | | | x |
| Mining, geology | x | x | | x | | |
| Recycling | x | | | | | |
| Art | | | | | x | x |
Comparison summary of all our hyperspectral cameras and systems in the visible - NIR:
| BlackIndustry | BlackBullet V2 | BlackBox | BlackBird V2 | BlackMobile | HERA-VisNir |
| Spectral Range (nm) | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 400-1000 |
| Spectral Bands | 100 | 250 | 500 | 100 | 100 | ∞ |
| Spectral resolution (nm) | 5 | 5 | 5 | 5 | 5 | min <1.5 |
| Spectral sampling (nm) | 5 | 2 | 1 | 5 | 5 | na |
| Spatial resolution (px) | 960x1 | 540x540 | 640x480 | 540x540 | 640x480 | 1280x1024 |
| Frame rate (full frame) | 540 Hz | | | | | |
| Integration time (cube) | | <3 s | 4 s | <3 s | <3 s | |
| Built-in RGB Camera | no | 2688x1512 | 2064x1544 px | 1800x1800 px | 3840x2160 px | no |
| Built-in LED Lighting | | | x | | x | |
| Internal GPU/CPU | GPU | GPU | CPU | GPU | GPU | no |
| Hyperspectral Camera | | x | | x | x | x |
| Hyperspectral Line-Scanner | x | | | | | |
| Hyperspectral System (cabinet) | | | x | | | |
| Weight | 1300 g | 630 g | na | 790 g | 1500 g | 2000 g |
| Push-broom | x | x | x | x | x | |
| Integrated scanning device (a) | | x | | x | x | |
| Interferometric, FT detection | | | | | | x |
(a): push-broom models with built-in scanning element: no need to move neither camera nor object
“Black” models are also available in alternate range 400-800 nm.
The BlackIndustry is also available in the range 700-1050 nm.
You might be interested in the LED lighting bar designed for use in hyperspectral imaging: HSG-BlackBright.
We are the distributors in Portugal and Spain of the manufacturers Haip Solutions (Germany), Nireos (Italy) and Silios Technologies (France).
Check here all our solutions in polyspectral imaging (hyperspectral and multispectral):
- visible-NIR (400-900 nm)
- SWIR (900-1700/2500 nm)
