InGaAs camera high resolution & sensitivity

High sensitivity InGaAs 900-1700 nm cameras

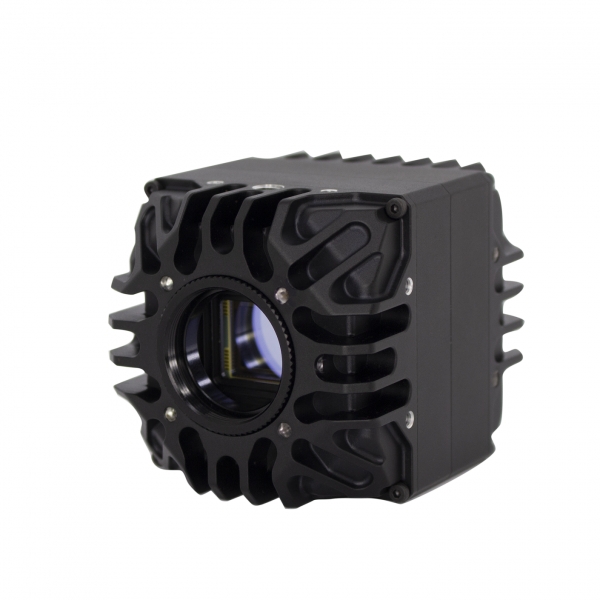

The new NIT-HiPE-SenS is a high end SWIR camera. It has TEC & fan air-cooled operating mode.
The camera features best in class performance for low light images and also long exposure time applications (thanks to very Low Noise and very Low Dark Current)

The NIT-HiPE-SenS infrared camera fills the gap between too expensive cooled systems and inexpensive cameras with short exposure times. Many applications don't demand cooling down to -80ºC and the cost-effective price of the HiPE-SenS will position it as a great candidate for high performance yet affordable InGaAs cameras.

They come with a 24-month warranty.

Key features  of the NIT high end IR InGaAs cameras (900-1700nm):
- TEC & fan air-cooled: operation at -20ºC
- 900 - 1700 nm, high QE InGaAs sensor
- 3 gain levels
- Lowest dark current in its class: <1500 e-/pixels/s @-20°C
- High QE: 90% typ
- Long exposure times
- Sensor noise: <40 e-
- Integration time: 10 us to 112 s
- Frame rate: up to 230 fps full frame
- Global shutter
- VGA, 640 x 512 px
- Bad Pixel Replacement and Non-Uniformity Correction
- USB3.0 interface
- Proprietary software WiDyVision and SDK; Windows and Linux
- MicroManager adapter

Typical applications  of the infrared (NIR - SWIR) high sensitivity cameras with InGaAs sensors:
- Medical & Life Science
- Metrology
- Microscopy
- Hyperspectral
- Process control (industry, semiconductors, food, …)
- solar panel and plant inspection; photoluminiscence, electroluminiscence
- Surveillance
- Photon counting
- Astronomy
- Infrared imaging in general

Specifications  of the NIT SWIR 900-1700 nm high performance cameras NIT-SenS-1280

Pixel size10µm x 10µm
Spectral response0.9 to 1.7 μm
ResponseLinear (CTIA); Low, Med & High Gain
Sensor Noise• typ. < 27e- in CTIA High Gain
• <155e- in CTIA Low Gain
Dynamic range• 52dB typical in CTIA (High Gain) with CDS
• 62dB typical in CTIA (Low Gain)
Full well capacity (in CTIA)• >11ke- (CTIA High Gain)
• >210ke- (CTIA Low Gain)
Dark currentTypical 30ke-/px/s
Frame rate60 Hz, full frame
Partial reading modeROI
Selective line scanning
Integration Time10us to 220ms in ITR
TriggerIN/OUT (LVTTL), adjustable delay
Dimensions58 x 58 x 70 mm
Weight< 400g
Lens mountC-Mount native
Operating Temp-40°C to +71°C
InterfaceUSB 3.0, CameraLink
GUINITVision / NITLink
SDKWindows & Linux


Summary chart of the InGaAs SWIR 900-1700 nm cameras that we can offer:

ResolutionInterfaceMax. Frame Rate (1)Peak QEMax Dynamic Range (2)Mode (3)Cooling
NIT-WiDy-SWIR320x256 / 640x512USB3.0, GigE, Analog, CL200 / 100 Hz> 70%120 dBLogno TEC
NIT-WiDy-SenS320x256 / 640x512USB3.0, GigE, Analog, CL1000 / 230 Hz> 70%120 dBLog / LinTEC
NIT-HiPe-SenS640x512USB3.0230 Hz> 85% (90% typ)64 dBLinTEC2 + fan
NIT-SenS-12801280x1024USB3.060 Hz> 85%62 dBLinTEC
NIT-LiSa-SWIR2048x1CL60 KHz> 85%64 dBLinTEC

(1) at full resolution
(2) depending on operation parameters
(3) Logarithmic mode provides high dynamic range (HDR mode); Linear mode provides high sensitivity (HS mode)

Write your review

InGaAs camera high resolution & sensitivity

InGaAs camera high resolution & sensitivity

The NIT-SenS-1280 SWIR InGaAs high sensitivity cameras (900-1700 nm) are the highest performance cameras of the market with high resolution 1280 x 1024 px.

We are the distributors in Portugal and Spain of New Imaging Technologies.
