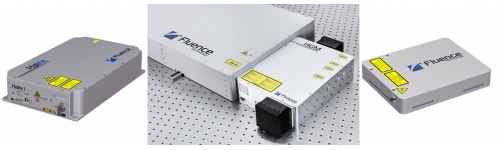

Here you will find the complete range of femtosecond (fs) pulsed non-tunable lasers from the technology expert Fluence Technology.
Truly all-fiber lasers for research and industrial applications.
1) Oscillator-Yb, picoseconds, compressible down to 200 fs, industrial grade, 1030 nm
Type of output | FC/APC |
Pulse duration | < 14 ± 2 ps (chirped) |
Compressible to | <200 fs |
Maximum average power | >20 mW |
Pulse energy | >1 nJ |
Spectral bandwidth | >10 nm FWHM |
Central wavelength | 1030 ± 5 nm |
Repetition rate | 20 ± 2.5 MHz |
2) Summary chart of femsosecond lasers:
| Halite 2 | Halite HE* | Jasper Flex | Jasper 10 | Jasper 20 | Jasper 30 | Jasper 60 |
Max avg power: | > 2 W | > 5 W | > 30 W | > 10 W | > 20 W | > 30 W | > 60 W |
Max pulse energy: | > 100 nJ | > 250 nJ | > 30 μJ | > 50 μJ | > 100 μJ | > 100 μJ | > 100 μJ |
at rep rate up to: | na | na | 1 MHz | 200 kHz | 200 kHz | 300 kHz | 600 kHz |
Base rep rate: | 20 ± 2.5 MHz |
Rep rate tuning: | no | no | single - 20MHz | single - 20MHz | single - 20MHz | single - 20MHz | single - 20MHz |
Pulse duration: | < 200 fs | < 250 fs | < 270 fs | < 270 fs | < 270 fs | < 270 fs | < 270 fs |
" " tuning: | Opt: (motor. GDD precomp. tuning) | <270fs - 8ps | <270fs - 8ps | <270fs - 8ps | <270fs - 8ps | <270fs - 8ps |
Wavelength: | 1030 ± 5 nm |
Opt wl outputs: | 515 nm (all), 343 nm & 258 nm (Jasper only) |
(*) Preliminary
If you are interested, here you will find information on wavelength tunable femtosecond lasers, OPA.
Some key applications for these femtosecond lasers, amplified lasers, seed and oscillator lasers and OPAs are:
Industrial | Biophotonics - medical | Scientific |
Micromachining | Ophtalmology | Pumping of OPA |
Materials processing | Biomimaging | Pump and probe in spectroscopy |
Display repair | Microscopy in general | FIBS sample preparation for AFM |
Polymer cutting | Multi-photon excited fluorescence | Seed for lasers and amplifiers |
Surface treatment and structuring | Multi-photon microscopy | Ultrafast science |
Jewelry, watches and diamonds | Stents and medical devices | Non-linear optics |
Glass and transparent materials | Heat-sensitive polymers | |
Semiconductors and LED/OLED | Neurosciences | |
Células y paneles solares | Optogenetics | |
Two-photon polymerization | | |
If you work with ultrafast lasers you might need:
- Laser protection eyewear and other laser safety products
- LPT-Blink-HS: laser power and energy meter with oscilloscope funtion up to 1MHz
- Instrumentation for laser pulse characterization & diagnostics
