Together with Fluence Technology, the expert manufacturer, we want to intruduce a complete line of pulsed fiber lasers with femtosecond (fs) pulse duration.

Truly all-fiber lasers for research and industrial applications.

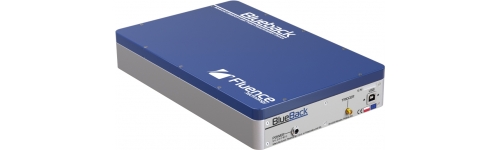

1) Oscillator-Yb, picoseconds, compressible down to 200 fs, industrial grade, 1030 nm

Type of output	FC/APC
Pulse duration	< 14 ± 2 ps (chirped)
Compressible to	<200 fs
Maximum average power	>20 mW
Pulse energy	>1 nJ
Spectral bandwidth	>10 nm FWHM
Central wavelength	1030 ± 5 nm
Repetition rate	20 ± 2.5 MHz

2) Summary chart of femsosecond lasers:

	Halite 2	Jasper Micro	Jasper Flex	Jasper 10	Jasper 20	Jasper 30	Jasper 60
Max avg power:	> 2 W	> 5 W	> 30 W	> 10 W	> 20 W	> 30 W	> 60 W
Max pulse energy:	> 100 nJ	> 50 μJ	> 30 μJ	> 50 μJ	> 100 μJ	> 100 μJ	> 100 μJ
at rep rate up to:	na	20 MHz	1 MHz	200 kHz	200 kHz	300 kHz	600 kHz
Base rep rate:	20 ± 2.5 MHz
Rep rate tuning:	no	single - 20MHz	single - 20MHz	single - 20MHz	single - 20MHz	single - 20MHz	single - 20MHz
Pulse duration:	< 200 fs	< 270 fs	< 270 fs	< 270 fs	< 270 fs	< 270 fs	< 270 fs
" " tuning:	Opt: (motor. GDD precomp. tuning)		<270fs - 8ps	<270fs - 8ps	<270fs - 8ps	<270fs - 8ps	<270fs - 8ps
Wavelength:	1030 ± 5 nm
Opt wl outputs:	515 nm (all), 343 nm & 258 nm (Jasper only)

(*) Preliminary

3) Harmony OPA: optical parametric amplifier, femtoseconds tunable laser:

Number of outputs	Four, as per table below
Pulse duration of Signal	< 200 fs
Signal bandwidth	< 250 cm-1

Output	Tuning range	Conversion efficiency**
Signal and idler	630 – 1030 nm and 1030 – 2600 nm	> 4% across tuning range, 9% at peak of tuning range
Opt. SH of signal and idler	315 – 510 nm and 520 – 630 nm	> 2% at peak of tuning range
Opt. FH of signal and idler	210 – 250 nm and 260 – 310 nm	> 0.5% at peak of tuning range
Opt. SH of pump beam	fixed 515 ± 3 nm	> 40%***
Opt. FH of pump beam	fixed 257 ± 2 nm	> 5%***

Some key applications for these femtosecond lasers, amplified lasers, seed and oscillator lasers and OPAs are:

Industrial	Biophotonics - medical	Scientific
Micromachining	Ophtalmology	Pumping of OPA
Materials processing	Biomimaging	Pump and probe in spectroscopy
Display repair	Microscopy in general	FIBS sample preparation for AFM
Polymer cutting	Multi-photon excited fluorescence	Seed for lasers and amplifiers
Surface treatment and structuring	Multi-photon microscopy	Ultrafast science
Jewelry, watches and diamonds	Stents and medical devices	Non-linear optics
Glass and transparent materials	Heat-sensitive polymers
Semiconductors and LED/OLED	Neurosciences
Células y paneles solares	Optogenetics
Two-photon polymerization

If you work with ultrafast lasers you might need:
- laser protection eyewear and other laser safety products
- LPT-Blink-HS: laser power and energy meter with oscilloscope funtion up to 1MHz
- instrumentation for laser pulse characterization & diagnostics
