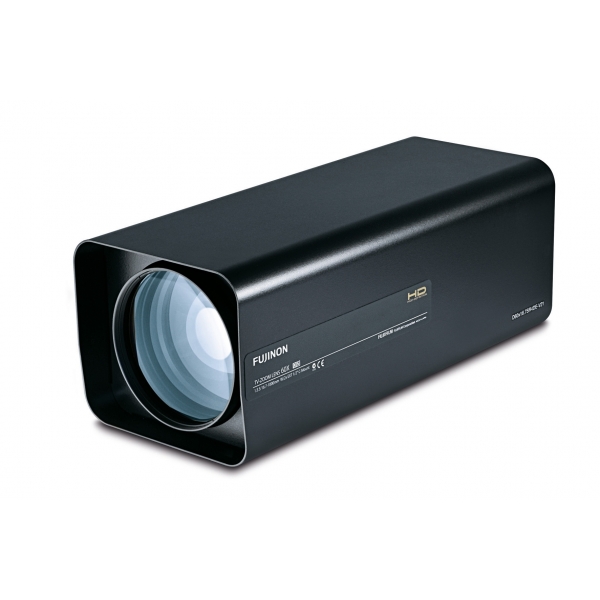

ZOOM lens for machine vision cameras, Fujinon (Fuji, Fujifilm): 5 MPx
ZOOM FUJI lenses (Fujinon, Fujifilm) are compatible with a large number of industrial imaging cameras or artificial vision, as well as multispectral or hyperspectral imaging cameras. Some of the compatible brands are: Sony, The Imaging Source, Silios, NIT, Baumer, Basler, Cognex, Keyence, Dalsa, Teledyne, Flir, Omron, Lucid, Datalogic, IDS, Sick, Jai, Ximea, Hitachi ...
|Description||60x Zoom lens with 2 megapixel resolution for day/night|
- analog control interface
- optical image stabilization
- autofocus function
|Focal length in mm||16.7~1000|
|Applicable lens||for 1/1.8" ~ 1/4" cameras|
|Operation iris||Auto (DC Type) or remote|
|Operation focus||Motor drive|
|Operation zoom||Motor drive|
|Angle of view||1/1.8":|
Wide: 23° 04' x 17° 04'
Tele: 0° 25' x 0° 19'
Wide: 20° 51' x 15° 54'
Tele: 0° 22' x 0° 17'
|Minimum object distance (M.O.D.) in m||5|
|Focusing range (from front lens) in m||infinity ~ 5|
|Mass in kg||~ 6.5|
|Filter thread||M112 x 0.75|
|Remarks||All of the quality benefits thanks to the same optical and mechanical specifications incorporated in the High-End D60x16.7SR4A series, but without the 2x extender, ND Filters or serial interface for the best price-performance ratio.|
|Optical image stabilization||yes: |
moving glass elements inside the lens minimize image vibration
