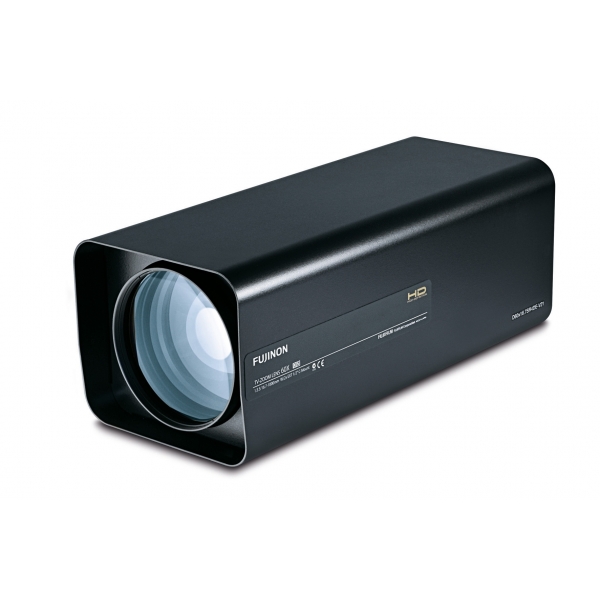

ZOOM lens for machine vision cameras, Fujinon (Fuji, Fujifilm): 5 MPx
ZOOM FUJI lenses (Fujinon, Fujifilm) are compatible with a large number of industrial imaging cameras or artificial vision, as well as multispectral or hyperspectral imaging cameras. Some of the compatible brands are: Sony, The Imaging Source, Silios, NIT, Baumer, Basler, Cognex, Keyence, Dalsa, Teledyne, Flir, Omron, Lucid, Datalogic, IDS, Sick, Jai, Ximea, Hitachi ...
| Description | 60x Zoom lens with 2 megapixel resolution for day/night - analog control interface - optical image stabilization |
|---|---|
| Focal length in mm | 16.7~1000 |
| Zoom ratio | 60 |
| Applicable lens | for 1/1.8" ~ 1/4" cameras |
| Iris range | F3.5~F16 |
| Operation iris | Auto (DC Type) or remote |
| Operation focus | Motor drive Preset possible |
| Operation zoom | Motor drive Preset possible |
| Angle of view | 1/1.8": Wide: 23° 04' x 17° 04' Tele: 0° 25' x 0° 19' 1/2": Wide: 20° 51' x 15° 54' Tele: 0° 22' x 0° 17' |
| Minimum object distance (M.O.D.) in m | 5 |
| Focusing range (from front lens) in m | infinity ~ 5 |
| Mount | C |
| Mass in kg | ~ 6.5 |
| Filter thread | M112 x 0.75 |
| Remarks | All of the quality benefits thanks to the same optical and mechanical specifications incorporated in the High-End D60x16.7SR4A series, but without the 2x extender, ND Filters or serial interface for the best price-performance ratio. ...coming soon! |
| Optical image stabilization | yes: moving glass elements inside the lens minimize image vibration |
