sCMOS camera - pco.edge 26

SCMOS Scientific camera - pco.edge 26

Maximizing the amount of information per image is crucial for microscopy, quality control, high throughput screening and other mesoscopic applications. This is where the new pco.edge 26 fits superb.

The pco.edge 26 offers you a 5120 x 5120 pixel resolution with 2.5 x 2.5 µm² pixel size. It is excellent for achieving the maximum level of spatial resolution. This even applies for microscopy imaging with low magnification.

The true charge domain global shutter allows for an exceptionally low readout noise and dark current. Combined with its adjustable cooling the pco.edge 26 enables you also to extend your exposure times up to 60 seconds.

Features of sCMOS camera pco.edge 26:

- true charge domain global shutter
- ultra high resolution: 5120 x 5120 pixel
- exposure time: 5 µs ... 60 s
- pixel size (h x v): 2.5 µm x 2.5 µm
- dynamic range 66 dB
- compact design
- frame rate 7 fps @ 26 MPix
- adjustable: from - 20 °C to + 20 °C peltier with forced air (fan) and water cooling
- up to 72 % quantum efficiency
- USB 3.1 Gen1 data interface

Anti-vibration technology with AlphaGEL®, sealed electronics for dust & dirt protection, optimized airflow with 3 seperate intakes, spider-less mounting with only 6.18 mm to image plane

Applications sCMOS camera pco.edge 26:

brightfield microscopy | fluorescence microscopy | digital pathology | light sheet fluorescence microscopy (LSFM) | structured illumination microscopy (SIM) | high-speed bright field ratio imaging | high throughput screening | high content screening | biochip reading | spinning disk confocal microscopy | 3D metrology | industrial quality inspection

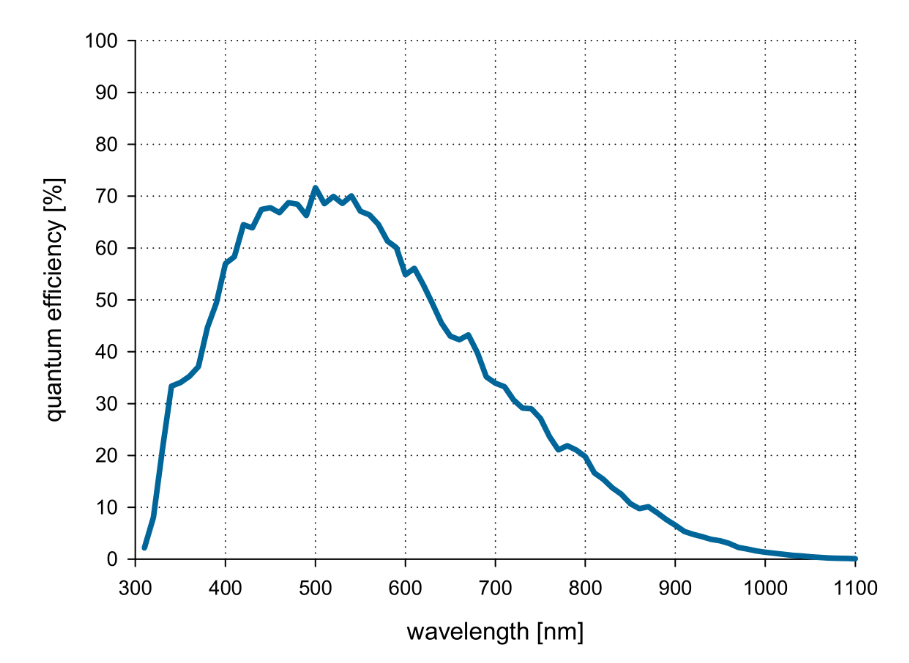

QE curves for sCMOS camera pco.edge 26:

Write your review

sCMOS camera - pco.edge 26

sCMOS camera - pco.edge 26

  • true charge domain global shutter
  • 5120 x 5120 pixel resolution
  • down to -20°C adjustable cooling
  • compact design
  • up to 72 % quantum efficiency
  • USB 3.1 Gen1

Write your review
