Home > Imaging systems>Optical filters>AUA-UNBP-532.2-0.3-OD6

AUA-UNBP-532.2-0.3-OD6

Item Number7041
Angle of Incidence0 Degrees
Center Wavelength 532.2 nm Nominal
FWHM
Transmission Band(s)†532.2 nm > 80% T Absolute
Blocking Level OD6
Blocking Range(s)*OD6: 200 to 524 nm, 540 to 1100 nm
Filter DesignMulti-Cavity
Substrate Type Polished Borofloat®
Dimensions25.3 mm Diameter
Filter Thickness2.0 mm
Assembly TypeAnodized Aluminum Ring
Assembly Thickness5.0 mm

Write your review

AUA-UNBP-532.2-0.3-OD6

AUA-UNBP-532.2-0.3-OD6

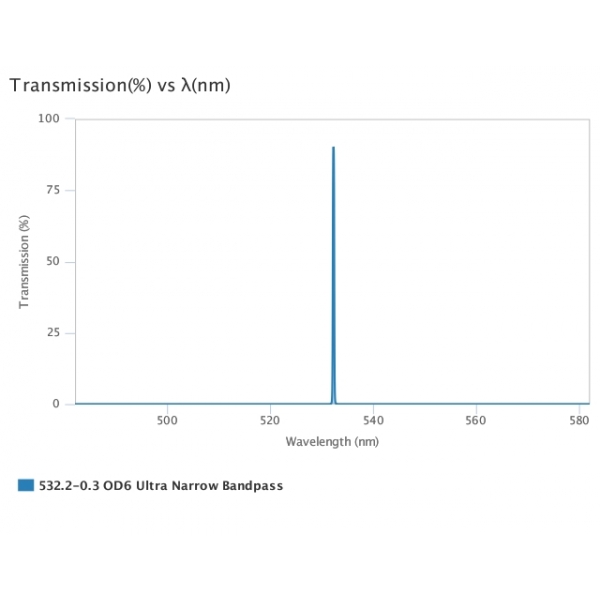

Alluxa Ultra-Narrow Bandpass Filter, 532.2 nm center wavelength, 0.3 nm FWHM and OD6 blocking. High performance with the narrowest bandwidth response.
