AUA-BP-524-32-OD6-usteep

Item Number7220
Angle of Incidence0 Degrees
Center Wavelength 524 nm ± 1.5 nm
FWHM 32 nm Nominal

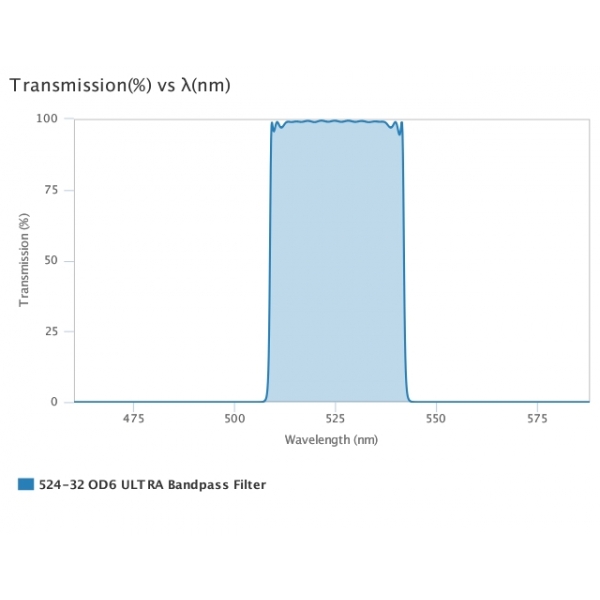

Transmission Band(s)510 to 538 nm > 95% T Average
Blocking Level OD6
Blocking Range(s)*OD6: 300 to 498 nm, 550 to 800 nm; OD4: 800 to 1000 nm; OD2: 1000 to 1100 nm
Parallelism
Transmitted Wavefront Error
Substrate Type Fused Silica
Dimensions25.0 mm Diameter
Filter Thickness2.0 mm
Assembly TypeAnodized Aluminum Ring
Assembly Thickness3.5 mm
Main Fluorophore(s)EGFP
Alternate Fluorophore(s)5-FAM, Alexa Fluor® 488, AmCyan1, ATTO 488, Azami Green, Azami Green (monomeric), BCECF@pH5.2, BCECF@pH5.5, BCECF@pH9, Calcein, Calcium Crimson™, CF™450, CF™488A, CyQUANT®, Emerald, FITC, Fluo-4, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, HCS CellMask™ Green, HCS LipidTOX™ Green Neutral Lipid Stain, HCS LipidTOX™ Green Phospholipidosis Detection Reagent, HiLyte™ Fluor 488, LIVE/DEAD® Fixable Green Dead Cell Stain, mHoneydew, MitoTracker® Green, MitoTracker® Green FM, mWasabi, NBD, NBD-X, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), Oregon Green® 488, PA-GFP (post-activation), PicoGreen® dsDNA Quantitation Reagent, PromoFluor-488, PromoFluor-488 Premium, Rhodamine 110, Rhodamine Green™, Rhodol Green, sgGFP, Spectrum Green, SYBR® Gold, SYBR® Green I, SYTO® 13, SYTO® 16, SYTO® RNASelect, TagGFP, TagGFP2, TurboGFP, YO-PRO®-1, YOYO®-1, ZsGreen1

Write your review

AUA-BP-524-32-OD6-usteep

AUA-BP-524-32-OD6-usteep

Alluxa Bandpass Filter, 524 nm center wavelength, 32 nm FWHM, OD6 blocking. Get the stepest filtering with Series ULTRA.
