Long range zoom camera

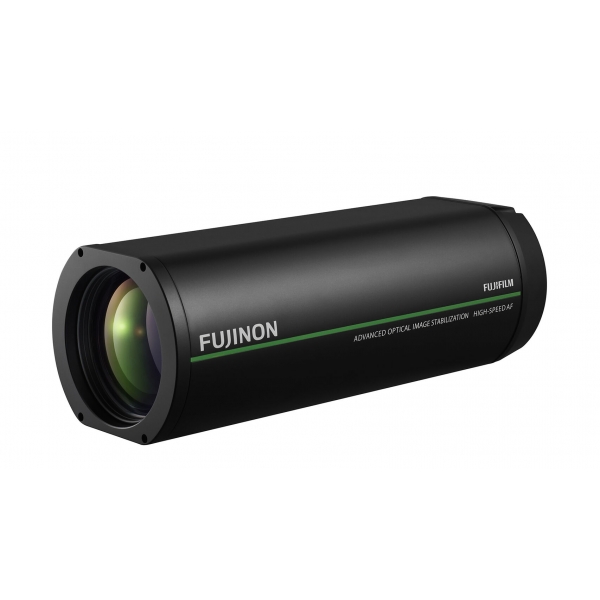

Multipurpose long range zom cameras FJN-SX800 and FJN-SX1600

The fusion of our vast lens manufacturing technology and our cutting edge image processing technology cultivated in our digital cameras has resulted in our new SX camera series.

Some key features of the FJN-SX series of long range zoom cameraas are:

Super telephoto objetive.

The wide range of focal lengths including super telephoto makes the inspection of remote or dangerous areas more safe versus conventional inspections conducted by people.

High performance image stabilization.

Compatible for use on vehicles and in windy conditions.
As you can see in the video, our high performance optical stabilization greatly reduces blurring in natural settings such as surveillance from a tower, inspections on the sea or monitoring a forest.

Shooting in the dark.

Supports nighttime and low illumination  surveilance and inspection.
The SX can shoot an object in low light without an illuminator.   When used with an illuminator the object can be seen even more clearly.

High speed autofocus (AF) system.

Detect objects at high speed.
High speed auto focus allows the SX to capture objects at a very high rate of speed.  The camera is also equipped with continuing AF that tracks objects of interest.

Fog and haze redution.

Vivid correction with original image processing technology.
When fog is present and making scenes challenging to see with the naked eye the SX series possesses unique technology that can easily cut through the fog and correct the scene.

Available models and technical data:

 SX800 / SX801SX1600
Optical zoom40x
Digital zoom1.25x, 1.5x, 1.75x, 2x
Focal length20mm – 800mm40mm – 1600mm
Maximum aperture ratio1:4 (20mm), 1:7.4 (800mm)1:8 (40mm), 1:14.8 (1600mm)
Minimum object distance (M.O.D) from the front lens10m (20 – 400mm in focal length) 20m (401 – 800mm in focal length)10m (40 – 800mm in 1/1.8" equivalent focal length) 20m (801 – 1600mm in 1/1.8" equivalent focal length)
Angle of view［16:9 (H x V) ］20mm 21.0° x 11.8°
800mm 0.55° x 0.31°		20mm 21.0° x 11.9° [at 1.1" (φ17.26mm) capture] 1600mm 0.27° x 0.15° [at 1/1.8" (φ8.63mm) capture]
Effective sensor size1/1.8"1/1.8" - 1.1"
Minimum illuminationColor 0.00015 lux (at F1.2) / 0.0017 lux (at F4.0) B/W 0.0001 lux (at F1.2) / 0.0011 lux (at F4.0)Color 0.00014 lux (at F1.2) / 0.0064 lux (at F8.0) B/W 0.0001 lux (at F1.2) / 0.0042 lux (at F8.0)
Focus settingsContinuous AF,  Quick AF, Manual
IrisAuto, Manual (Aperture range : F4 – F16)Auto, Manual (Aperture range : F8 – F32)
Shutter speedAuto (with minimum speed selection of 1/8 – 1/125s),  Manual (1 – 1/32000s)
GainAGC, HYPER-AGC, Manual (Setting range : ISO400 – 819200)
Optical filterVisible Light Cut filter (ON / OFF)
Day / Night selectionAuto, Scheduled, Manual
Wavelengths selection950nm, 940nm, 850nm, 808nm, Visible light
Image stabilizationAuto, OIS, EIS, OFFAuto (OIS+EIS), OIS, EIS, OFF
Wide dynamic rangeSelectable (2 levels)
Back light correctionSelectable (2 levels)
Heat haze reductionSelectable (3 levels)
Fog reductionSelectable (3 levels)
Noise reductionSelectable (3 levels)
Brightness / Contrast / Saturation / SharpnessSelectable (100 levels)
White balanceAWB, AWB-W, Custom 1 – 2, Fine, Shade, Color Temperature (3000K, 5000K, 9000K)
Video formatNTSC : 1080p, 720p, 480p / PAL : 1080p, 720p, 576p
Video output systemsHDMI, HD-SDI, Composite(BNC)
Audio input / outputInput impedance : 40kΩ / Output impedance : 200Ω
External interfacesEthernet (10Base -T, 100Base-TX, RJ45 connector), RS-485 (Half duplex), External trigger (Day / Night)Ethernet (10Base -T, 100Base-TX, RJ45 connector),
RS-485 (Half duplex, Full duplex), External trigger (Day / Night)
RS-485 compatible protocolPelco-D / Pelco-P (including extended commands)
Power sourceDC12V
Power consumptionSX800 : 9.5W / SX801 : 15W15W
Supported SD card (SDHC / SDXC)UHS-1-compatible 8GB+, SD Speed Class 10 or above
File recording formatMOV (Video encoding : H.264 compliant, Motion JPEG)
Network protocolsICMP, ARP, TCP / IP, UDP / IP, HTTP, RTSP, RTP, DHCP, DNS, RTP/RTCP, SNTP
Supported OSWindows 10
Supported browserGoogle Chrome 71+ (Only SX800)Google Chrome 99+ / Windows Edge 99+
ONVIF supportYes (Profile S)
Number of videos deliveredSX800 : 1 / SX801 : 31
Size (H x W x L)139mm x 156mm x 410mm139mm x 156mm x 450mm
Weight6.4kg7.4kg
Filter thread sizeM112 x 1mm
Operating environmentTemperature : –10°C – +50°C / Humidity : 10% – 80% (no condensation)
Tilt limit45 degrees upward – 45 degrees downward

FJN-SX800FJN-SX1600

Typical applications of the multipurpose long range zoom Fujinon cameras FJN-SX800 / FJN-SX1600 and other zoom cameras in our catalog:

ApplicationFJN-SX800FJN-SX1600SNY-FCBTIS-zoom
Border and perimeter surveillancexx
Long range surveillancexx
Super long range surveillance x
Securityxxx
Defencexxx
Traffic, licence plate recognition (ITS)xxxx
Logistics  xx
Industrial machine vision   x
Video Conferencing  x
Unmanned systems (RPAS, drone, UAV, UGV, UUV)  x
Broadcast  x
Infrastructure inspectionxxx
Adverse light conditionsxxx

Check out our industrial imaging and computer vision products:
- Lenses (fixed focal, zoom, autofocus, telecentric, ...)
- Artificial vision and industrial image cameras
- Lighting (line and pattern lasers, LEDs)
- Protection housings
- Multispectral and hyperspectral cameras

Write your review

Long range zoom camera

Long range zoom camera

Long range zoom camera FUJINON (Fuji / Fujifilm) SX800 and SX1600
- focal: 20 - 800 mm / 40 - 1600 mm
- optical zoom: 40x
- digital zoom: 1.25x, 1.5x, 1.75x, 2x

We are the Fujinon Optical Devices distributors in Spain and Portugal
