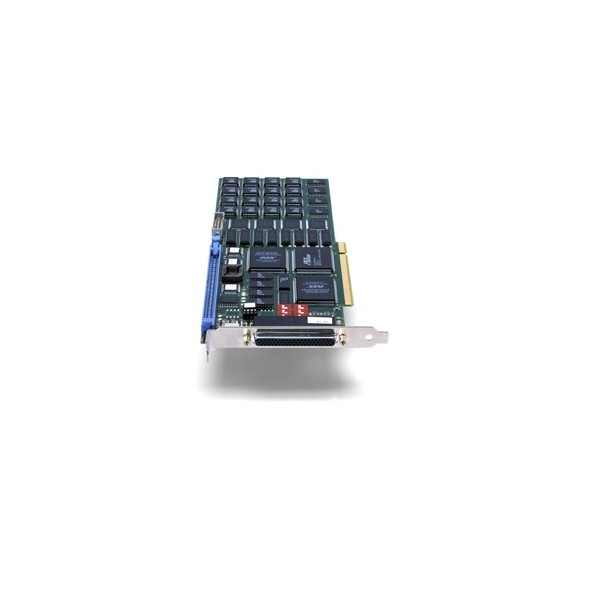

Road Runner 44M

32-bit/33MHz bus master PCI bus interface board
Flow-Thru architecture featuring a Scatter/Gather DMA engine that supports the direct transfer of data to VGA or system memory in real-time with no latency or CPU usage
Acquires image sizes up to 512K by 32K pixels (vertical size is unlimited for line scan cameras)
LVDS/RS422 (32-bit) area or line scan camera interface supporting a single camera with up to 4 8-bit channels, two synchronized cameras or two multiplexed asynchronous cameras (model dependent)
9 user-programmable I/O signals (4 inputs and 5 outputs)
Multiple trigger modes
Up to 40MHz acquisition for LVDS and 30MHz for RS-422 (contact us for higher clock rates)
On-the-fly reformatting for multi-tap cameras
Standard 8-bit in/12-bit out LUT
Optional 16-bit in/16-bit out LUT available
Cables and configuration files for more than 200 industrial cameras
Drivers and DLLs for Windows NT, 2000 and XP
Supported by all versions of the BitFlow SDK
