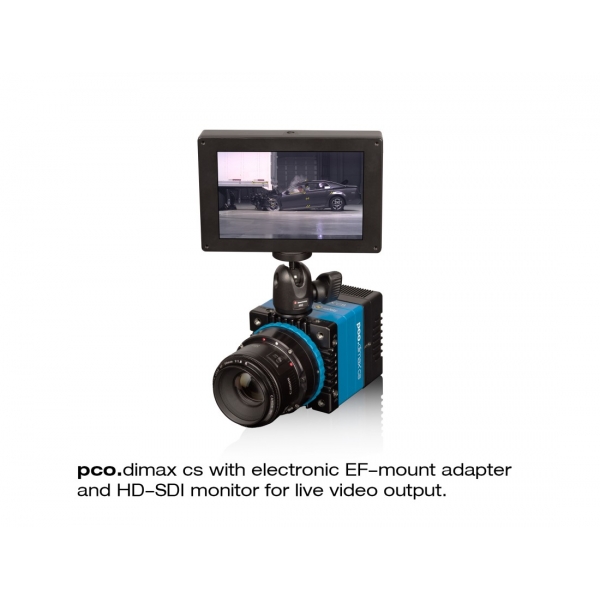

pco.dimax cs3 - high speed camera

pco.dimax cs3 - PCO high speed camera

The pco.dimax cs camera series has been specifically designed for harsh and demanding applications, inter alia, vehicle crash tests or microscopy experiments. Therefore, the cameras are compact, lightweight and ruggedized, allowing for being mounted in a multitude of positions (onboard, off-board).

The pco.dimax cs3 achieves frame rates of up to 1603 fps at a resolution of 1920 x 1440 pixels. Its excellent light sensitivity and outstanding image quality classify the slow motion videos for precise analysis and measurements. Multiple lens mounts (incl. electronic lens control), HD-SDI video output and the automatic image calibration feature make the cameras a versatile and powerful tool.

Key features of pco.dimax cs3:

- 1603 fps @ 1920 x 1440 resolution

- 3086 fps @ 1296 x 1024 resolution
- 85 x 85 x 102.5 mm compact measurement
- 12 bit dynamic range
- 9 GB internal camera memory
- high-G ruggedized body (150G for 11 ms)
- secure trigger & sync modes
- excellent light sensitivity
- quick-change lens adapter
- automatic image calibration
- HD-SDI output
- electronic Canon lens control (optional)

Technical data of pco.dimax cs3:

parameterunitsetpointpco.dimax cs3
resolution (hor x ver)pixel1920 x 1440
pixel size (hor x ver)11.0 x 11.0
peak quantum efficiency%@ 600 nm typ.50
dynamic range A/Dbit12
readout noisee- rms22
frame ratefps1603
exposure time ranges1.5 µs - 40 ms
region of interest (ROI)steps of24 x 4 pixel (centered)
optical inputF-mount, C-mount
data interfaceGigE

QE curves of pco.dimax cs3:

Cuadro resumen de cámaras alta velocidad compactas y reforzadas (resitentes a choques) y con memoria interna:
- size / weight: 85 x 85 x 102.5 mm3 / 0.985 Kg
- quantum efficiency: up to 50%
- exposure time: 1.5us - 40ms
- dynamic range A/D: 12 bit
- internal memory: 9 GB
- interface: GigE
- with appllication oriented and user friendly pco.camware software, ideal for controlling multiple cameras

resolution (px)frame rate (fps) / recording time (s)
 pco.dimax cs1pco.dimax cs3pco.dimax cs4
2016 x 2016  1102 / 1.40
2016 x 1536  1443 / 1.40
1920 x 1440 1603 / 1.411603 / 1.41
1920 x 1080 2128 / 1.422128 / 1.42
1440 x 1440 2032 / 1.492032 / 1.49
1296 x 10243086 / 1.533086 / 1.533086 / 1.53
1296 x 7204346 / 1.544346 / 1.544346 / 1.54
1008 x 9524009 / 1.634009 / 1.634009 / 1.63
864 x 8485010 / 1.715010 / 1.715010 / 1.71
528 x 52810782 / 2.0810782 / 2.0810782 / 2.08

El test de choque de maniquíes (dummy crash test) es una de las aplicaciones estrella de algunas de estas cámaras de alta velocidad.

Escribe tu opinión

pco.dimax cs3 - high speed camera

pco.dimax cs3 - high speed camera

The pco.dimax cs camera has been specifically designed for harsh and demanding applications, inter alia, vehicle crash tests or microscopy experiments. Therefore, the cameras are compact, lightweight and ruggedized, allowing for being mounted in a multitude of positions.

The pco.dimax cs3 achieves frame rates of up to 1603 fps at 1920 x 1440 pixels. Its excellent light sensitivity and outstanding image quality classify the slow motion videos for precise analysis and measurements.
