KEO-CEFA-C-PB-HP-SM-27-NL0-OM1-M102-FA-FA

CEFA-C-PB-HP   series   are   Erbium   doped   fiber
amplifiers  designed  for  single  channel  amplification.
These  C-band  amplifiers  deliver  up  to  42  dBm  of
saturate output power.
The serie includes polarization-maintaining OEM models
and narrow linewidth amplification options.
Keopsys develops different platforms :

•User-friendly
turnkey  benchtop  instruments,  directly
monitoring from front face.

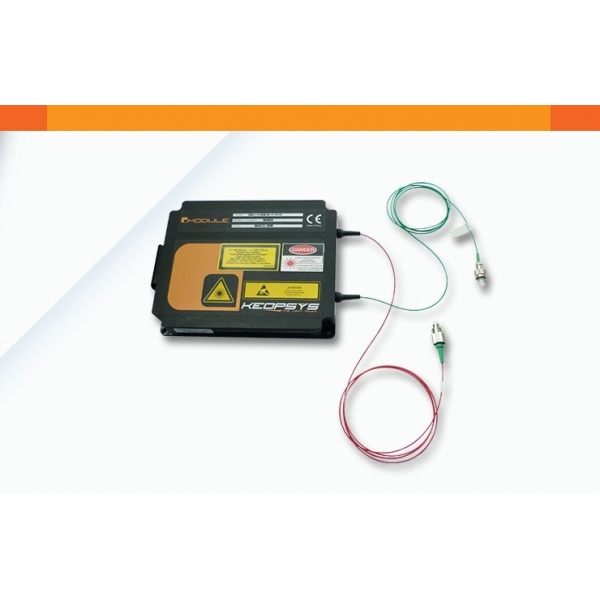

•Very  compacts  modules,  in  particular  the  MSA  module
platform (M102) with up to 30 dBm output power.

•Both  benchtops  and  OEM  modules  can  be  controlled
with a PC via RS232 using our B2V2 software.
Built with several stages of amplification, these devices can
be operated at low input power down to -20 dBm. They also
offer excellent optical noise figure and high optical signal to
noise ratio at the output.
Their  wide  range  of  operations  make  these  amplifiers
suitable for many different applications.
