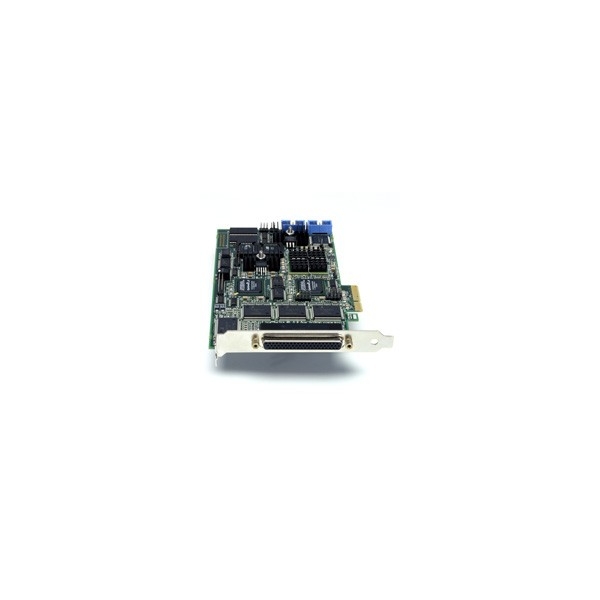

Alta-AN1

Parameters	Alta-AN1	Alta-AN2	Alta-AN4
Number of simultaneous monochrome cameras	1	2	4
Number of simultaneous two-tap cameras	1	2	4
Number of simultaneous RGB cameras	1	2	4
Number of trigger inputs	1	2	4
Total number of camera MUXed	2	4	8

Parameters	Alta-AN All models
Bits per channel	8 Bits
Maximum channels per VFG	3
Maximum frames per second	No Limit
Maximum A/D conversion frequency	160 MHz
Analog input voltage range	0.35 to 1.4 Volts P-to-P
Gain adjustment range	+/-6 dB
Gain adjustment resolution	8 Bits
Gain matching between channels	+/-1 percent of full scale
Offset adjustment range	+/-127 LSB
Maximum frame size	16K x 16K
Power for camera	12 Volts @ 0.5 Amps
Interface	Four lane (x4) PCI Express
Differential non-linearity typical	+/-0.5 LSB
Differential non-linearity maximum	+1.0/-0.9 LSB
Integral non-linearity typical	+/-1.1 LSB
Integral non-linearity maximum	+/-2.75 LSB
PLL jitter typical	250 picoseconds P-to-P
PLL jitter maximum	450 picoseconds P-to-P
HSYNC Frequency Range	10 to 150 kHz
