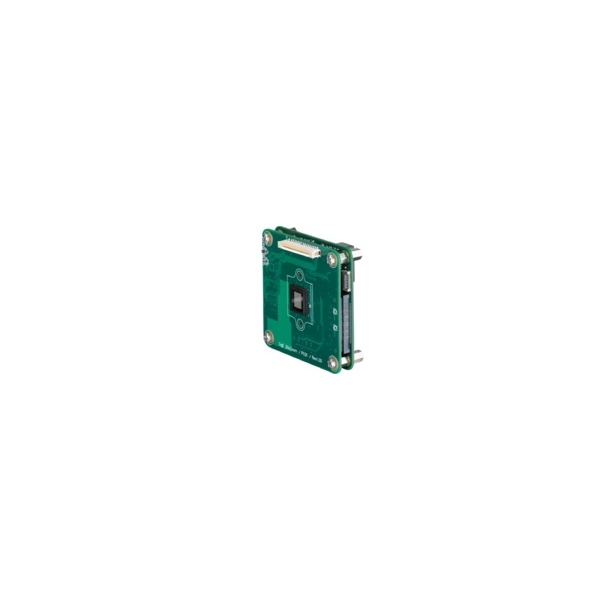

Camara tarjeta GigE mono

Cámara tarjeta o Board camera para visión artificial e imagen industrial The Imaging Source GigE Monocromo (Blanco y negro)

Estas cámaras son perfectas para aplicaciones con espacio reducido gracias a su tamaño compacto.

Subject to change
General behavior
Sensitivity	0.015 lx
Dynamic range	8/12 bit
Video formats @ frame rate (maximum)	1,920x1,200 (2.3 MP) Y800 @ 41 fps 1,920x1,200 (2.3 MP) Y16 @ 20 fps
Interface (optical)
IR cut filter
Sensor type	CMOS Exmor
Sensor specification	IMX236LLJ
Shutter	rolling
Format	¹/_2.8 inch
Pixel size	H: 2.8 µm, V: 2.8 µm
Lens mount	M12x0.5
Interface (electrical)
Interface	GigE
Supply voltage	11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current consumption	approx 600 mA @ 12 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 45 mm, W: 45 mm, L: 20 mm
Mass	10 g
Adjustments
Shutter	¹/_100,000 s to 30 s
Gain	0 dB to 12 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

TIS-DMM-25GX236-ML
