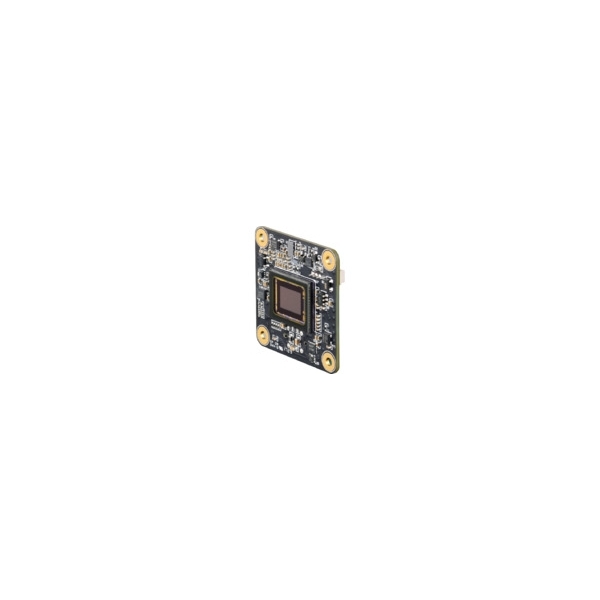

Camara tarjeta USB3.1 mono

Cámara tarjeta o Board camera para visión artificial e imagen industrial The Imaging Source USB 3.1 Monocromo (Blanco y negro)
Somos los distribuidores oficiales de The Imaging Source en España y Portugal

¹/_2.9 inch Sony CMOS Pregius sensor (IMX287LLR)
720x540 (0.4 MP), up to 539 fps
Global shutter
Trigger and I/O inputs
Manufactured by The Imaging Source
Windows and Linux software included

The imaging Source españa distribuidor the imaging source españa

Más detalles

Escribe tu opinión

Ficha técnica
Comentarios

Cámara tarjeta o Board camera para visión artificial e imagen industrial The Imaging Source USB 3.1 Monocromo (Blanco y negro)

Estas cámaras son perfectas para aplicaciones con espacio reducido gracias a su tamaño compacto.

Subject to change
General behavior
Vision standard
Dynamic range	10 bit
Resolution	720x540 (0.4 MP)
Frame rate	539 fps
Video output format	8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
Interface (optical)
IR cut filter
Sensor type	CMOS Pregius
Sensor specification	Sony IMX287LLR
Shutter	global
Format	¹/_2.9 inch
Pixel size	H: 6.9 µm, V: 6.9 µm
Lens mount	M12x0.5
Interface (electrical)
Interface	USB 3.1
Supply voltage	4.75 VDC to 5.25 VDC
Current consumption	approx 380 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 30 mm, W: 30 mm, L: 15 mm
Mass	7 g
Adjustments
Shutter	1 µs to 30 s
Gain	0 dB to 48 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
