Camara tarjeta USB3.1 color

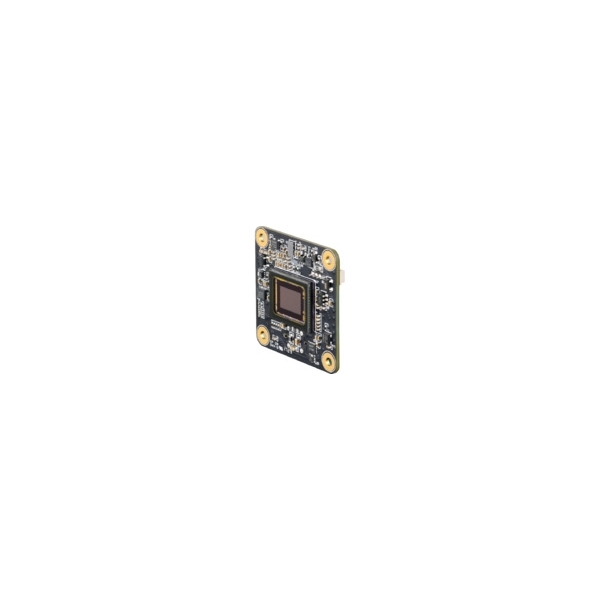

Cámara tarjeta o Board camera para visión artificial e imagen industrial The Imaging Source USB 3.1 color

Estas cámaras son perfectas para aplicaciones con espacio reducido gracias a su tamaño compacto.

Subject to change.
GENERAL BEHAVIOR
Vision standard
Dynamic range	12 bit
Resolution	4,000×3,000 (12 MP)
Frame rate	30 fps
Video output format	8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG)
INTERFACE (OPTICAL)
IR cut filter
Sensor type	CMOS STARVIS
Sensor specification	IMX226CQJ
Shutter	rolling
Format	1/1.7 inch
Pixel size	H: 1.85 µm, V: 1.85 µm
Lens mount	M12x0.5
INTERFACE (ELECTRICAL)
Interface	USB 3.1
Supply voltage	4.75 VDC to 5.25 VDC
Current consumption	approx 320 mA @ 5 VDC
Auto iris control
Trigger
I/Os
INTERFACE (MECHANICAL)
Dimensions	H: 30 mm, W: 30 mm, L: 15 mm
Mass	7 g
ADJUSTMENTS
Shutter	50 µs to 30 s
ENVIRONMENTAL
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
