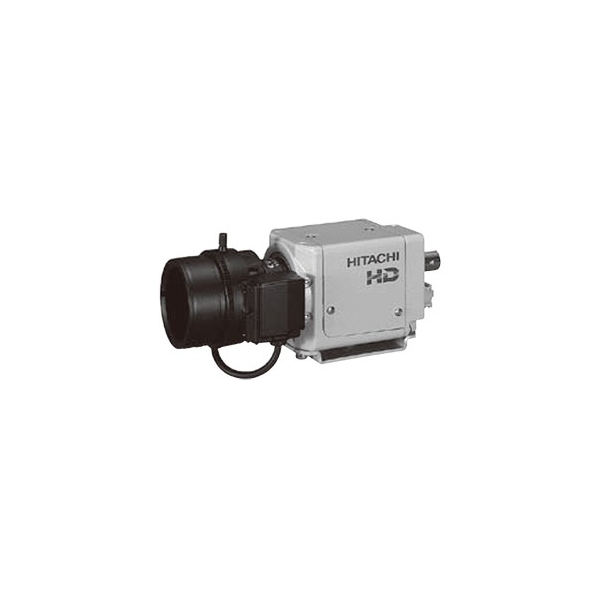

KP-HD20A

Imaging device1/3" Progressive Scan CMOS
Total pixels2010(H) x 1108(V) 2.2M pixels
Effective pixels1944(H) x 1092(V) 2.1M pixels
Sync systemInternal
Video outputSMPTE292M (HD-SDI Std mode) / Analog CVBS
Video formatHD-SDI: 1080i 59.94/50, 1080P 30/25
CVBS: NTSC,PAL
Transmission distanceHD-SDI Std mode: max 100m (5C-FB 75ohm)
HD-VLC mode: max 300m
(5C-2V 75ohm/Special Multi unit MU-HD101 use)
*mode selectable
Minimum illuminationColor: 0.2 lx (F1.2/ AGC42dB)
B/W: 0.02 lx (F1.2/ AGC42dB)
*3200K Tungstenlamp use
S/N Ratio50dB (AGC: OFF / Weight: ON)
Resolution800TV line
Lens mountC/CS *C: Cmount Adaptor use
AGCOFF / Auto (Max Gain 48dB) / Manual (0dB to +48dB)
*1dB step setting
Electric shutterOFF/ AES/ Manual (1/30 to 1/14000)
Back Light compensationOFF/ ON (Area setting)
White BalanceATW/ AWC/ Manual (2500K to 10000K)
Wide Dynamic RangeOFF/ DRC *DRC: contrast compensation
Picture Adjust MenuVideo level / Gamma correction / Chroma level / Black level / Enhance level
Lens controlDC Auto Iris / VIDEO Iris
Remote controlRS-232C
Power ConsumptionDC+12V / Power multiplex 4.5W
Operating temperature-10 to +45°C
Dimensions44 (W) x 44 (H) x 59 (D) mm
MassApprox. 130g

Escribe tu opinión

KP-HD20A

KP-HD20A

FULL HD
1/3" MOS
1080·59.94i/50i/30p/25p
1080i/720p (1944 x 1092)
44 x 44 x 59 mm
