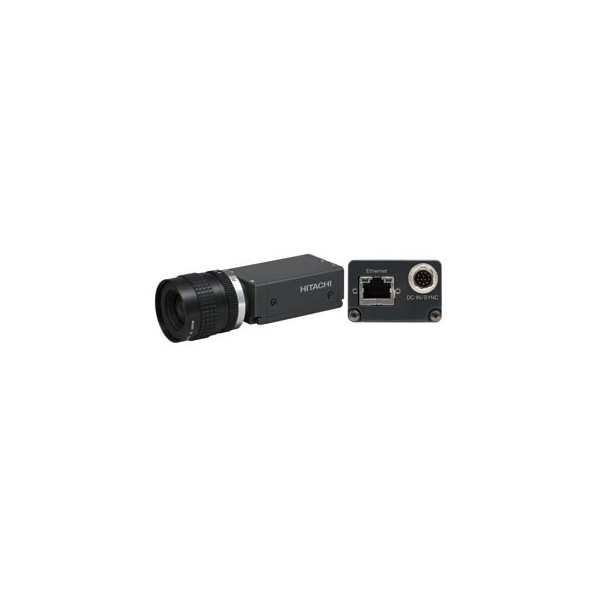

KP-FD140GV

Ficha técnica
Comentarios

Imaging device		1/2-inch progressive scan interline CCD(With on chip micro lens )
	Total number of pixels	1434(H)×1050(V)1434(H)×1050(V)
	Number of effective pixels	1392(H)×1040(V)
	Pixel size	4.65μm(H)×4.65μm(V)(Square lattice)
	Color filter	RGB primary color mosaic filter
Sensing area		6.32 mm(H)×4.76 mm(V)
Scanning system		Progressive
Sync system		Internal / External(Trigger)
Lens mount		C mount
Flange focal distance		17.526 mm
Video output	Interface	Gigabit Ethernet
	Protocol	GigE Vision
	Transfer rate	1 Gbps
	Image format	RGB 8 / 10 / 12 bit, YUV(4:2:2)8 / 10 / 12 bit, Mono 8 / 10 / 12 bit, Raw 8 / 10 / 12 bit
	Image size	1360(H)×1024(V)
	Frame rate	30 frames per second *Frame rate differs in formats following. RGB 8bit: 26 frames per second RGB 10bit: 18 frames per second RGB 12bit: 13 frames per second YUV 12bit: 16 frames per second
Sensitivity		2000 lx, F5.6, 3200K
Electric shutter speed		OFF / Auto (AES) / Manual (PRESET or VARIABLE), OFF is normal exposure (frame rate)
	PRESET	1/30, 1/60, 1/100, 1/250, 1/1000, 1/2000, 1/10000, 1/50000 second
	VARIABLE	From 10 second to approx. 1/100000 second
External trigger shutter	Mode	Fixed shutter, One trigger, VD Sync, Reset control
	Input	Via Gigabit Ethernet cable (Software trigger), 12-pin connector (Hardware trigger)
	Input level	5 Vp-p ±1 V
External sync signal	VD output	5 Vp-p ±0.3 V
External sync signal	Strobe out	5 Vp-p ±0.3 V
Binning node		OFF / ON
Partial scan		Grabbing image area is adjustable at horizontal / vertical
ALC (Auto level control)		Adjustable for video level
White balance		ATW / MANUAL / One-push
Gain		Auto / Manual (0dB to 18dB)
Gamma		OFF(Γ=1)/LUT
Color masking		6 color independent masking
Paint black		Adjustable
Sharpness		Adjustable
Black level		Adjustable
Knee		Adjustable
Power supply		DC+12V plus minus 1V (input from 12-pin connector), 48 V (PoE)
Power consumption		Approx. 5.0W / 415mA (@DC+12V)
Ambient temperature		0 C°∼+40 C° / 30∼80%RH
	Operating	10 C°∼+50 C° / 30∼80%RH
	Storage	20 C°∼+60 C° / 20∼90%RH
Vibration endurance		68.65 m/s2 or less (10 to 200Hz, 30 minutes each on XYZ axes)(Do not subject to strong vibration for long periods of time.
Shock endurance		490.3 m/s2 or less (vertical, horizontal, once each face)
External dimensions		44(W)×29(H)×72(D)mm(not including lens and protrusions)
Mass		Approx. 140g (without lens)
