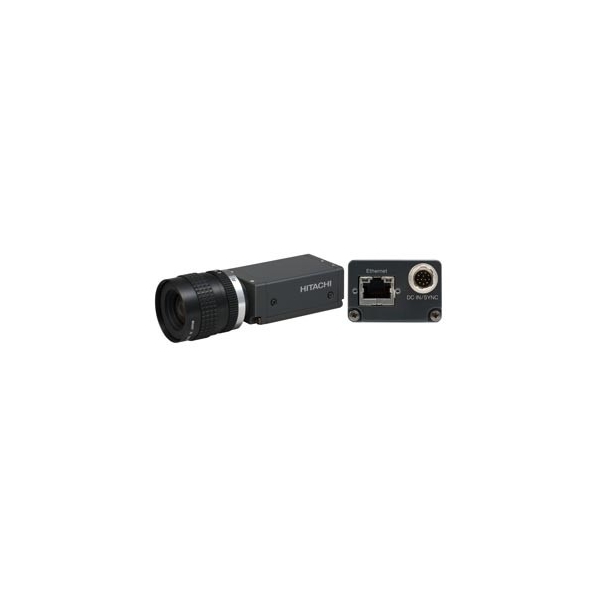

KP-FD202GV

Imaging device1/1.8-inch progressive scan interline CCD
 Total number of pixels1688(H)×1248(V)
No. of effective pixels1628(H)×1236(V)
Pixel size4.4 µm(H)×4.4 µm(V) (Square pixel)
Color filterRGB primary color mosaic filter
Scanning area7.16 mm(H)×5.44 mm(V)
Scanning systemProgressive
Sync systemInternal / external
Lens mountC mount
Flange focal distance17.526 mm
Video outputInterfaceGigabit Ethernet
ProtocolGigE Vision compliant
Transfer rate1 Gbit per second
Image formatRGB 8 / 10 / 12bit, YUV (4:2:2) 8 / 10 / 12bit, RAW 8 / 10 / 12bit, MONO 8 / 10 / 12bit
Image size1620(H)×1220(V)
Frame rate30 frames per second
*Frame rate is different for following format
RGB 12bit: 33 frames per second
Sensitivity2000 lx, F8, 3200K
Electric shutter speedOFF/Auto(AES)/Manual(PRESET or VARIABLE),OFF is normal exposure(frame rate)
 PRESET1/30, 1/60, 1/100, 1/250, 1/1000, 1/2000, 1/10000, 1/50000 second
VARIABLEFrom 10 second to approx. 1/100000 second
External trigger shutterModeFixed shutter,One trigger,VD Sync,Reset control
InputVia Gigabit Ethernet cable (Software trigger),12-pin connector (Hardware trigger)
Input level5 to 24 Vp-p
External sync signalVD output5 Vp-p ±0.3 V
Strobe out5 Vp-p ±0.3 V
Partial scanGrabbing image area is adjustable at horizontal / vertical
ALC (Auto level control)Adjustable for video level
White balanceATW/MANUAL/One-push
GainAuto / Manual (0 dB to 18 dB)
GammaOFF (γ=1) / ON
Color maskingOFF/ON (6 color independent masking)
Paint blackAdjustable
SharpnessAdjustable
Black levelAdjustable
KneeAdjustable
Power supplyDC+12 V plus minus 1 V (input from 12-pin connector),48 V (PoE)
Power consumptionApprox. 7.5 W (DC+12 V)
Ambient temperaturePerformance0 °C to +40 °C / 90 %RH or less
Operating–10 °C to +50 °C / 90 %RH or less
Storage–20 °C to +60 °C / 70 %RH or less
Vibration endurance98.6 m/s² or less(15 to 200 to 15 Hz, 10 minutes each on XYZ axes) (Do not subject to strong vibration for long periods of time.)
Shock endurance490.3 m/s² or less (vertical, horizontal, once each face)
External dimensions44(W)×29(H)×72(D) mm (not including lens and protrusions)
MassApprox. 140 g (without lens)
Supplied equipmentCamera and CD-ROM (Operation manual / driver software)
Optional accessoriesTripod adaptor (TA-M1),LAN cable (Enhanced category 5 or Category 6)

Escribe tu opinión

KP-FD202GV

KP-FD202GV

1CCD Color, Progressive, 1/1.8inch
No. of effective pixels:UXGA(1628(H) × 1236(V))
Frame rate:30 fps
External dimensions:44 × 29 × 72mm, Mass:140g, 8/10/12bit
