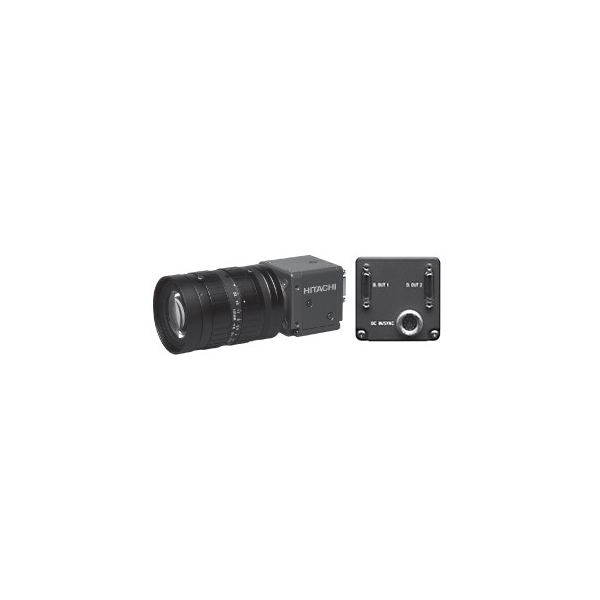

KP-FD202SCL

Ficha técnica
Descargar Documentación
Comentarios

Imaging device		1/1.8-inch progressive scan interline CCD
	Total pixels	1688 (H)×1248 (V)
	Effective pixels	1628 (H)×1236 (V)
	Pixel size	4.4 µm (H)×4.4 µm (V)(square lattice)
	Color filter	RGB primary color mosaic filter
Sensing area		7.13 mm (H)×5.37 mm (V)
Scanning system		Progressive
Aspect ratio		4 : 3
Frame rate		30 frames per second (full pixel readout)
Horizontal drive frequency		72.0000 MHz
Scanning frequency		Horizontal: 37.5 kHz , Vertical: 29.95 Hz
Sync system		Internal
Lens mount		C mount (Flange focal distance = 17.526 mm
Video output	Interface	CameraLink 72.0000 MHz
	Protocol	Base configuration (1ch: SDR connector×1pc.) Medium configuration (2ch: SDR connector×2pcs)
	Output format	(a) 24bits (R: 8bit G: 8bit B: 8bit) (Base configuration) (b) 30bits (R: 10bit G: 10bit B: 10bit) (Medium configuration) (c) 36bits (R: 12bit G: 12bit B:1 2bit) (Medium configuration)
	Output image size	1620 (H)×1220 (V) (full pixel readout)
Sensitivity		2000 lx, F5.6, 3200 K
Minimum illumination		10 lx (F1.4, MAX GAIN)
Signal noise to ratio		48 dB
Electric shutter		OFF, 1/30, 1/60, 1/100, 1/250, 1/1000, 1/2000, 1/10000, 1/50000 second. OFF is normal exposure (frame rate) or changeable by variable shutter (from 10 to 1/100000 second)
Frame on demand		Mode: (A) Fixed shutter mode (8 steps or variable) (B) ONE trigger mode (C) VD reset mode Trigger input: CameraLink (CC1) or DCIN/SYNC connector
Partial scan		Selectable start position and height of picture grabbing in 1H step.
ALC (Auto level control)		Mode: (A) AGC (Auto gain control) (B) AES (Auto electric shutter) (C) AGC & AES Video Level: Adjustable
Gain		Auto/Manual (0 to +18dB) (Approx. 0.0358dB step)
White balance		ATW / MANUAL / One-push
Gamma		OFF (γ=1) / LUT
Color masking		OFF / ON (6 vector independent masking)
Paint black		Adjustable
Sharpness		Adjustable
Brightness		Adjustable
Knee		Adjustable
Power supply voltage		12 ± 1 VDC
Current consumption		Approx. 340 mA (Approx. 4.1W) *When partial scan is ON, Approx. 415 mA (Approx. 5.0W)
Ambient temperature	Performance	0 to +40 °C (+32 to +104 °F), less than 90 % RH (without dew condensation)
	Operation	-10 to +50 °C (+14 to +122 °F), less than 90 % RH (without dew condensation)
	Storage	-20 to +60 °C (-4 to +140 °F), less than 70 % RH (without dew condensation)
Vibration endurance		10 to 55Hz (2.37 to 71.7 m/s²), sweep: 1minute, XYZ, 30 min
Shock endurance		490.3 m/s² (Drop test, once each top, bottom, left and right)
External dimensions		44 (W)×44 (H)×41 (D) mm (Not including protrusions)
Mass		Approx. 110 g
