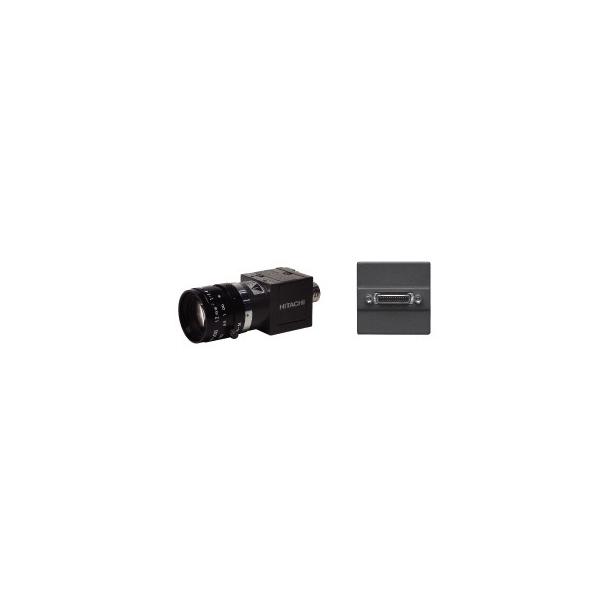

KP-F80SCL

Imaging device1/3-inch interline CCD
 Total pixels1077 (H)×788 (V)
Effective pixels1034 (H)×779 (V)
Pixel size4.65 µm (H)×4.65 µm (V) (square lattice)
Sensing area4.76 mm (H)×3.57 mm (V)
Scanning systemProgressive
Aspect ratio4 : 3
Frame rate36 frames per second (full pixel readout)
Horizontal drive frequency36.0000 MHz
Horizontal scanning frequency28.346 kHz
Vertical scanning frequency35.79 Hz
Sync systemInternal
Lens mountC mount (Flange focal distance =17.526 mm)
Video outputDigital output (CameraLink) Base configuration: 36.0000 MHz (Note: maximum cable length is 10 m) Output image size: 1024 (H)×768 (V) (full pixel readout)
ResolutionHorizontal / Vertical: Approx. 800 TV lines
Sensitivity400 lx, F2.8, 3200 K
Minimum illumination1.0 lx (F1.4, MAX GAIN, without IR cut filter)
Signal noise to ratio50 dB
Electric shutterOFF, 1/36, 1/60, 1/125, 1/250, 1/1000, 1/2000, 1/10000, 1/50000 second
OFF is normal exposure (frame rate) or changeable by variable shutter (minimum 1/100000 second)
Gammaγ = 1
Frame on demandMode(A) Fixed shutter mode (8 steps or variable)
(B) ONE trigger mode
(C) VD reset mode
Trigger inputCameraLink (CC1) *When Reset control mode CC1 and CC2 are used
Partial scanSelectable start position and height of picture grabbing in 1H step.
Power supply voltage12 ± 1 VDC
Current consumptionApprox. 120 mA (approx. 1.5 W)
Ambient temperaturePerformance0 to +40 °C (+32 to +104 °F), less than 90 % RH (without dew condensation)
Operation10 to +50 °C (+14 to 122 °F), less than 90 % RH (without dew condensation)
Storage-20 to +60 °C (-4 to 140 °F), less than 70 % RH (without dew condensation)
Vibration endurance98 m/s² (Acceleration: constant) 10 to 200 Hz, sweep: 10 minutes, XYZ 30 minutes
Shock endurance686 m/s² (Drop test, once each top, bottom, left and right)
External dimensions29 (W)×29 (W)×29 (D) mm (Not including protrusions)
MassApprox. 50 g

Escribe tu opinión

KP-F80SCL

KP-F80SCL

Monochrome, Progressive, 1/3inch
No. of effective pixels:XGA (1034(H) × 779(V))
Frame rate:36 fps
External dimensions:29 × 29 × 29mm, Mass:50g
