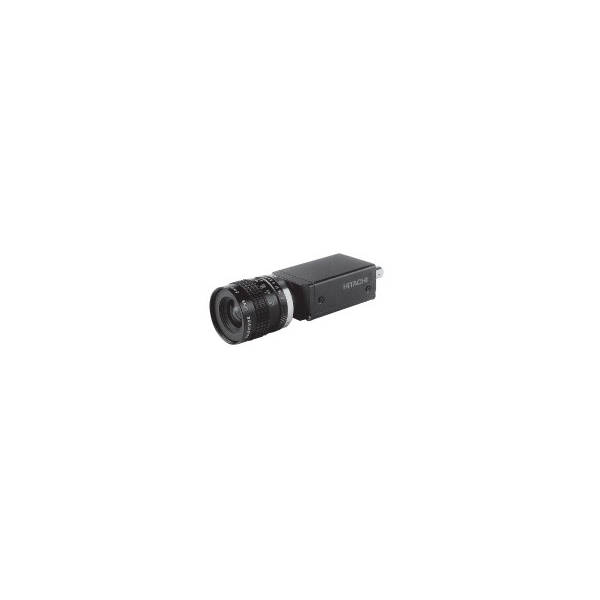

KP-M3A

Imaging device		1/2-inch interline CCD
	Total pixels	EIA: 811 (H)×508 (V) CCIR: 795 (H)×596 (V)
	Effective pixels	EIA: 768 (H)×494 (V) CCIR: 752 (H)×582 (V)
	Pixel size	EIA: 6.35 µm (H)×7.4 µm (V) CCIR:6.5 µm (H)×6.25 µm (V)
Sensing area		EIA: 4.88 mm (H)×3.66 mm (V), CCIR: 4.89 mm (H)×3.64 mm (V)
Scanning frequency		Horizontal; EIA:15.734KHz, CCIR:15.625KHz Vertical; EIA: 59.94Hz , CCIR: 50Hz
Sync system		Internal/external (auto selection)
Lens mount		C mount (Flange focal distance=17.526 mm
Video output		1.0Vp-p 75Ω Un-baranced Video: 0.7Vp-p sync : 0.3Vp-p negative
Horizontal resolution		EIA: 570TV Line CCIR: 560TV Line
Sensitivity		400 lx (F8, Max. gain, 3200K)
Minimum illumination		0.3 lx (F1.4, AGC, Gamma ON, without IR cut filter)
Signal noise to ratio		56 dB
External sync input		Input; HD/VD 2 to 6V DC negative, frequency deviation: ±1%, Impedance: 75Ω or high impedance
Electric shutter		1/100 (EIA), 1/120 (CCIR), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, second. OFF is normal exposure
Gamma		γ = 1 or adjustable
Accumulate mode		Filed of flame accumulate
Power supply voltage		12 ± 1 VDC
Power consumption		Approx. 1.4 W
Ambient	Operation	–10 to 50 °C (+14 to +122 °F) , less than 90 % RH
Ambient	Storage	–20 to 60 °C (–4 to +140 °F) , less than 70 % RH
Vibration endurance		98 m/s² (Acceleration: constant) 10 to 200 Hz, sweep: 10 minutes, XYZ 30 minutes
Shock endurance		686 m/s² (Drop test, once each top, bottom, left and right)
External dimensions		44 (W)×29 (H)×72 (D) mm
Mass		Approx. 55 g
