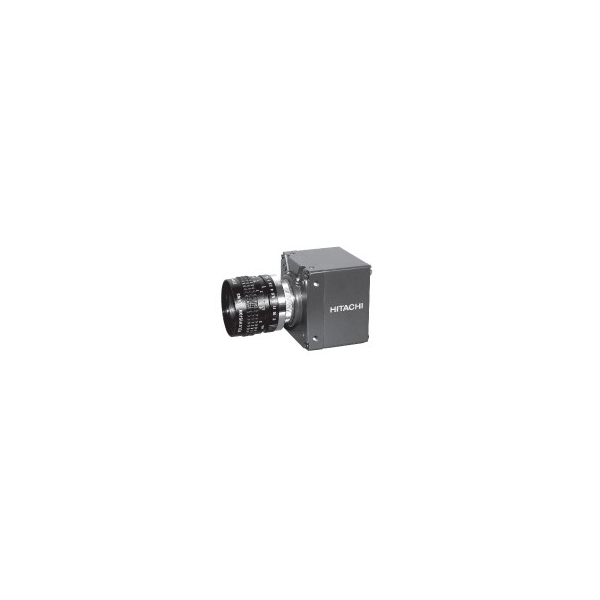

KP-FD30

Ficha técnica
Descargar Documentación
Comentarios

Imaging device		1/2-inch interline CCD
	Total pixels	692 (H)×504(V)
	Effective pixels	659 (H)×494 (V)
	Pixel size	9.9 µm (H)×9.9 µm (V)
Color filter		RGB primary color mosaic filter
Sensing area		6.52 mm (H)×4.89 mm (V)
Scanning frequency		Horizontal: 31.468KHz, Vertical: 59.94Hz
Sync system		Internal/external (auto selection)
Lens mount		C mount (Flange back: adjustable)
Video output		RGB (G on SYNC), Y/C (only NTSC mode), VBS (only NTSC mode)
Horizontal resolution		440TV Line
Sensitivity		2000 lx (F5.6, 100 IRE)
Minimum illumination		10 lx (F1.4, Max. gain, 50 IRE)
Signal noise to ratio		50 dB or more
External sync input		Input; HD/VD 2Vp-p Trigger: VGA mode only, low: 0V, high: 2 to 5V
Electric shutter	Preset	High speed: OFF(1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/20000, 1/30000, 1/50000 second Low speed: OFF(1/60) , 1/15, 1/10, 1/7.5, 1/6, 1/5, 1/3.75, 1/3, 1/2.5, 1/1.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.5, 7.0, 7.5, 8.0 second
	AES	1/60 to approx. 1/50,000 second (Response : SLOW NORMAL FAST)
	VARIABLE	1H steps from 1/60 to 1/10,000 second
Power supply voltage		12 VDC ±10%
Power consumption		KP-FD30: Approx. 360mA, KP-FD30M: Approx. 370mA
Ambient	Operation	–10 to 50 °C (+14 to +122 °F) , 30 to 80 % RH
Ambient	Storage	–20 to 60 °C (–4 to +140 °F) , 20 to 90 % RH
Vibration endurance		68.65 m/s² (Acceleration: constant 10 to 200 Hz, XYZ 30 minutes
Shock endurance		490.3 m/s² ((vertical, horizontal, once each direction)
External dimensions		58 (W)×58 (H)×48 (D) mm (Not including protrusions)
Mass		Approx. 220 g
