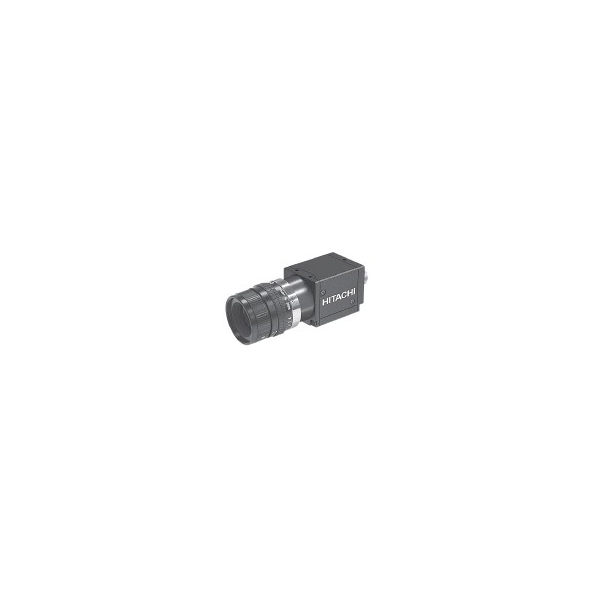

KP-F80

Imaging device1/3-inch interline CCD
 Total pixels1077 (H)×788 (V)
Effective pixels1034 (H)×779 (V)
Pixel size4.65 µm (H)×4.65 µm (V) (square lattice)
Sensing area4.81 mm (H)×3.62 mm (V)
Aspect ratio4 : 3
Frame rate30 frames per second
Horizontal scanning frequency23.622 kHz
Vertical scanning frequency29.83 Hz
Sync systemInternal/external (auto selection)
Lens mountC mount (Flange focal distance=17.526 mm
Video output1.0Vp-p 75Ω Un-barances
Video: 0.7Vp-p
Sync : 0.3Vp-p negative
Horizontal resolution800 TV Line
Sensitivity400 lx (F4, with IR cut filter, 3200K)
Minimum illumination1.0 lx (F1.4, Max. gain, without IR cut filter)
Signal noise to ratio54 dB
External sync inputSwitchable by external switch
Input; HD/VD 4 to 6V DC negative, frequency deviation: ±1%, Impedance: 75Ω or high impedance
Output; HD/VD 5V DC negative, Impedance: 100Ω
Electric shutter1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/50000 second.
OFF is normal exposure (frame rate)
Gammaγ = 1
Frame on demand(A) Fixed shutter
(B) ONE trigger mode
(C) Reset control mode
(D) Partial scan mode (option)
Power supply voltage12 ± 1 VDC
Power consumptionApprox. 2.2 W
AmbientOperation–10 to 50 °C (+14 to +122 °F) , less than 90 % RH
Storage–20 to 60 °C (–4 to +140 °F) , less than 70 % RH
Vibration endurance98 m/s² (Acceleration: constant) 10 to 200 Hz, sweep: 10 minutes, XYZ 30 minutes
Shock endurance686 m/s² (Drop test, once each top, bottom, left and right)
External dimensions29 (W)×29 (H)×38.5 (D) mm (Not including protrusions)
MassApprox. 55 g

Escribe tu opinión

KP-F80

KP-F80

Monochrome, Progressive, 1/3inch
No. of effective pixels:XGA (1034(H) × 779(V))
Frame rate:30 fps
External dimensions:29 × 29 × 29mm, Mass:50g
