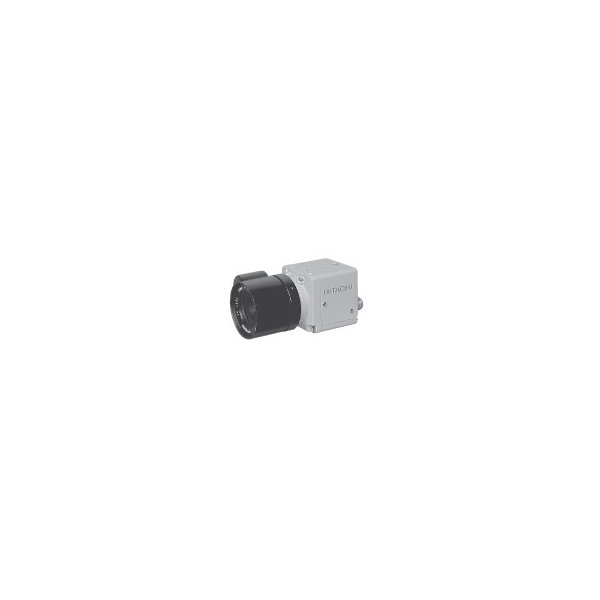

KP-D20A

Imaging device		1/3-inch interline CCD
	Total pixels	NTSC: 811 (H)×596(V) , PAL: 795 (H)×596(V)
	Effective pixels	NTSC: 768 (H)×494(V) , PAL: 752 (H)×582(V)
	Pixel size	NTSC: 6.35 µm (H)×7.4 µm (V), PAL: 6.5 µm (H)×6.25 µm (V)
	Color filter	RGB primary color mosaic filter
Sensing area		NTSC: 4.88 mm (H)×3.66 mm (V), PAL: 4.89 mm (H)×3.64 mm (V)
Scanning frequency		NTSC; Horizontal: 15.734 kHz, Vertical: 59.94Hz PAL; Horizontal: 15.625 kHz, Vertical: 50 Hz
Sync system		Internal
Lens mount		C/CS-mount (C-mount adaptor optionally)
Video output		VBS, Y/C
Horizontal resolution		NTSC: 480TV Line, PAL: 470TV Line
Minimum illumination		0.8 lx (F1.2, Max. gain)
Signal noise to ratio		50 dB or more
Electric shutter		OFF(NTSC:1/60,PAL:1/50),1/100(PAL:1/120),1/25 0,1/500, 1/1000,1/2000,1/4000,1/10000,1/20000,1/30000 second, AES
White balance		ATW / AWC / MANUAL
Digital zoom		Enlarged 4 times smoothly
Backlight compensation		Sensing areas selectable from 9 areas
Power supply voltage		12 VDC ±10%
Power consumption		Approx. 220mA
Ambient	Operation	–10 to 50 °C (+14 to +122 °F) , 30 to 80 % RH
Ambient	Storage	–20 to 60 °C (–4 to +140 °F) , 20 to 90 % RH
Vibration endurance		29.42 m/s² (Acceleration: constant 10 to 55 Hz, XYZ 30 minutes
External dimensions		44 (W)×44 (H)×49 (D) mm (Not including protrusions) KP-D20B-S6: 58 (W)×44 (H)×49 (D) mm
Mass		Approx. 130 g KP-D20B-S6: 170 g
