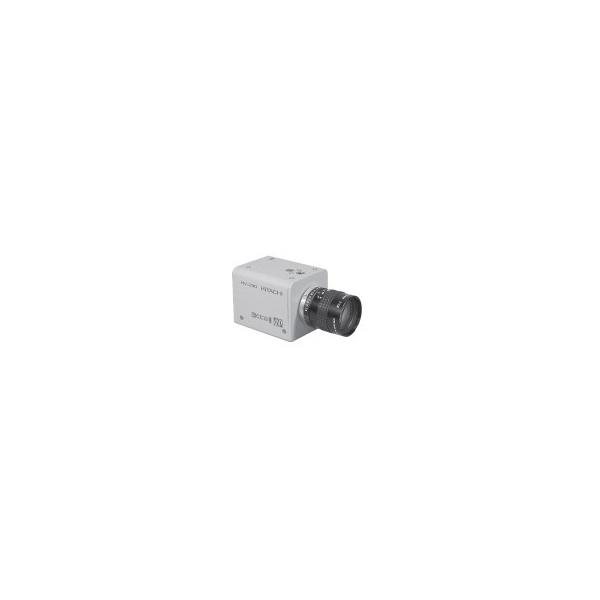

HV-D30

Color system		NTSC, PAL
Optical system		1/3-inch, F2.2 prism
Imaging device		1/3-inch interline CCD (R, G, B 3CCD)
	Total pixels	NTSC 811(H)×508(V) PAL : 795(H)×596(V)
	Effective pixels	NTSC 768(H)×494(V) PAL : 752(H)×582(V)
Sync system		Internal/external (VBS, BBS or HD/VD auto selection)
Horizontal resolution		800TV lines, luminance signal center (Y out and DTL off)
S/N		NTSC: 64dB (DNR: ON), PAL: 62dB (DNR: ON)
Standard sensitivity		2000lx, F9.5
Minimum illumination		0.9lx (50IRE, F2.2, GAIN: +24dB, DIGITAL GAIN: +12dB)
Gamma correction		0.45/1.0 (ON/OFF)
Lens mount		C mount (flange back 17.25mm in air)
Sensitivity selection		AGC (0 to +24dB) or GAIN (0 to +24dB step 1dB or step 3dB on remote control menu)
CCD drive functions	Preset	1/100(1/60 PAL), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/20000, 1/40000, 1/100000 second
	Lockscan	NTSC 1/60.38 to 1/2039 second (step 1H), to, 1/100000 second (step approx. 10% video level) PAL 1/50.31 to 1/2024 second (step 1H), to 1/100000 second (step approx. 10% video level)
	Long time integration	Frame/field integration selection 1/30 (NTSC), 1/25 (PAL) to approx. 8 seconds (1frame step)
Power supply voltage		12 V rated (stable operation at 10.5 to 15 VDC (ripple and noise absent))
Power consumption		Approx. 4.5W
Dimensions		65(W)×65(H)×80(D)mm
Mass		400g approx.(not including lens)
Ambient temperature		Operating -10 to +45 °C (+14 to +113 °F)
Ambient temperature		Storage -20 to +60 °C (-4 to +140 °F)
