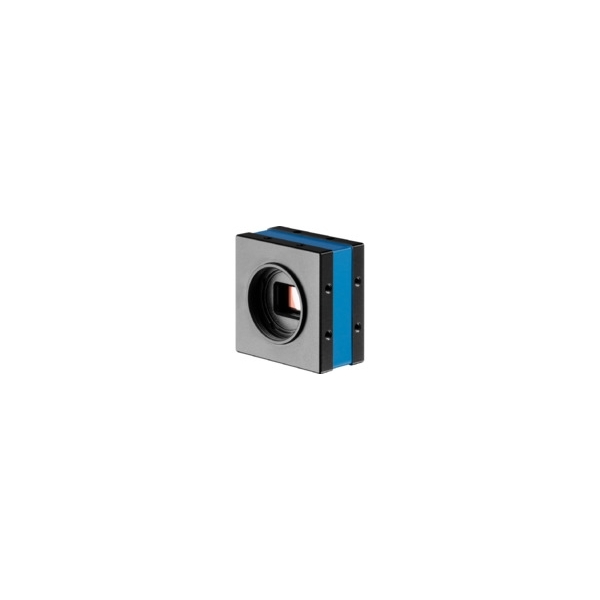

TIS-DMK-37BUX264

Subject to change
General behavior
Vision standardUSB3 Vision is the interface standard for implementing the USB 3.0 interface in industrial machine vision.
Dynamic range12 bit
Resolution2,448x2,048 (5 MP)
Frame rate38 fps
Video output format8-Bit Monochrome, 16-Bit Monochrome
Interface (optical)
IR cut filter
Sensor typeCMOS Pregius
Sensor specification Sony IMX264LLR
Shutterglobal
Format2/3 inch
Pixel sizeH: 3.45 µm, V: 3.45 µm
Lens mountC/CS
Interface (electrical)
InterfaceUSB 3.1
Supply voltage4.75 VDC to 5.25 VDC
Current consumptionapprox 360 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 42 mm, W: 42 mm, L: 25 mm
Mass76 g
Adjustments
Shutter25 µs to 4 s
Gain0 dB to 48 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

TIS-DMK-37BUX264

TIS-DMK-37BUX264

  • 2/3 inch Sony CMOS Pregius sensor (IMX264LLR)
  • 2,448x2,048 (5 MP), up to 38 fps
  • Global shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows and Linux software included
