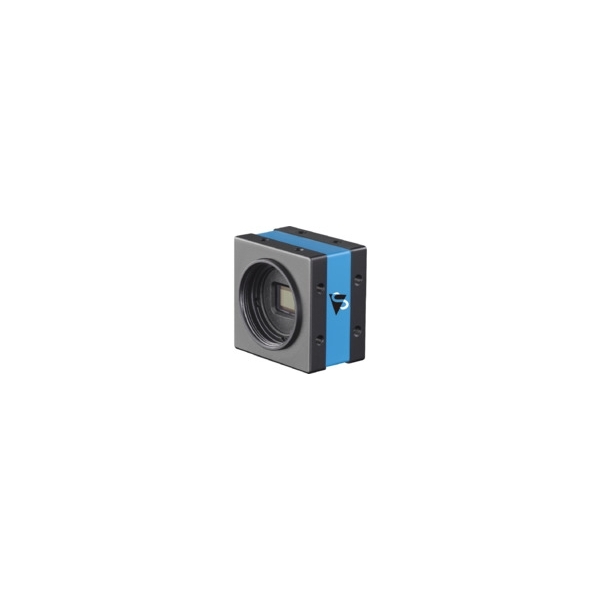

TIS-DMK-37AUX226

Industrial camera for artificial vision and industrial imaging The Imaging Source USB 3.1 monochrome (White and black).

These cameras are perfect for developing artificial vision or industrial imaging applications since they are compatible with numerous accessories such as C / CS mount lenses, protection housings, filters ...

Subject to change
GENERAL BEHAVIOR
Vision standard
Dynamic range	12 bit
Resolution	4,000×3,000 (12 MP)
Frame rate	30 fps
Video output format	8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
INTERFACE (OPTICAL)
IR cut filter
Sensor type	CMOS STARVIS
Sensor specification	Sony IMX226CLJ
Shutter	rolling
Format	1/1.7 inch
Pixel size	H: 1.85 µm, V: 1.85 µm
Lens mount	C/CS
INTERFACE (ELECTRICAL)
Interface	USB 3.1
Supply voltage	4.75 VDC to 5.25 VDC
Current consumption	approx 320 mA @ 5 VDC
Auto iris control
Trigger
I/Os
INTERFACE (MECHANICAL)
Dimensions	H: 36 mm, W: 36 mm, L: 25 mm
Mass	70 g
ADJUSTMENTS
Shutter	50 µs to 30 s
ENVIRONMENTAL
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
