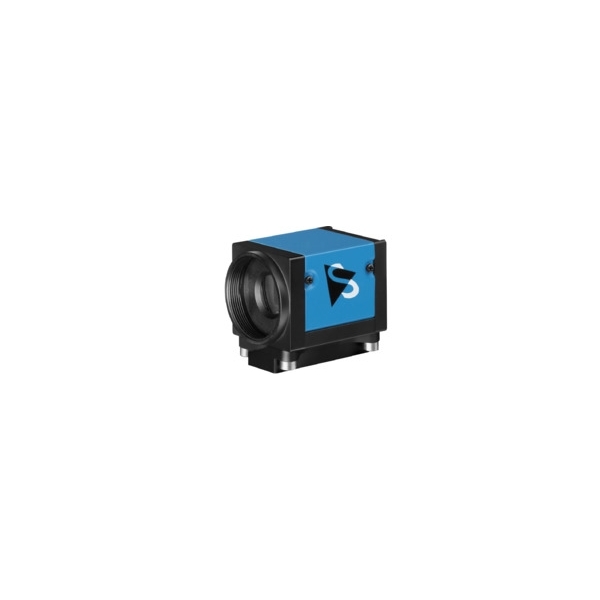

TIS-DMK-33UR0521

Industrial camera for artificial vision and industrial imaging The Imaging Source USB 3.0 monochromo.
These cameras are perfect for developing artificial vision or industrial imaging applications since they are compatible with numerous accessories such as C / CS mount lenses, protection housings, filters ...

Subject to change
GENERAL BEHAVIOR
Vision standard
Dynamic range	12 bit
Resolution	2,592×1,944 (5 MP)
Frame rate	60 fps
Video output format	8-Bit Monochrome, 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR), RGB24, YUV 4:2:2, YUV 4:1:1
INTERFACE (OPTICAL)
IR cut filter
Sensor type	CMOS
Sensor specification	AR0521
Shutter	rolling
Format	1/2.5 inch
Pixel size	H: 2.2 µm, V: 2.2 µm
Lens mount	C/CS
INTERFACE (ELECTRICAL)
Interface	USB 3.0
Supply voltage	4.75 VDC to 5.25 VDC
Current consumption	approx 600 mA @ 5 VDC
Auto iris control
Trigger
I/Os
INTERFACE (MECHANICAL)
Dimensions	H: 29 mm, W: 29 mm, L: 43 mm
Mass	65 g
ADJUSTMENTS
Shutter	100 µs to 30 s
ENVIRONMENTAL
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
