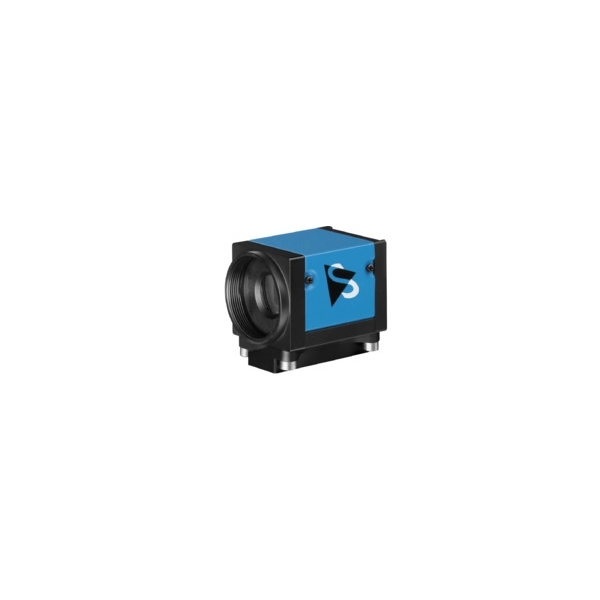

TIS-DMK-33UP1300

Industrial camera for artificial vision and industrial imaging The Imaging Source USB 3.0 monochrome (White and black).

These cameras are perfect for developing artificial vision or industrial imaging applications since they are compatible with numerous accessories such as C / CS mount lenses, protection housings, filters ...

Subject to change
General behavior
Vision standard
Dynamic range	10 bit
Resolution	1,280x1,024 (1.3 MP)
Frame rate	210 fps
Video output format	8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
Interface (optical)
IR cut filter
Sensor type	CMOS Python
Sensor specification	On Semiconductor PYTHON 1300
Shutter	global
Format	1/2 inch
Pixel size	H: 4.8 µm, V: 4.8 µm
Lens mount	C/CS
Interface (electrical)
Interface	USB 3.0
Supply voltage	4.75 VDC to 5.25 VDC
Current consumption	approx 680 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 29 mm, W: 29 mm, L: 43 mm
Mass	65 g
Adjustments
Shutter	50 µs to 10 s
Gain	0 dB to 9.21 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
