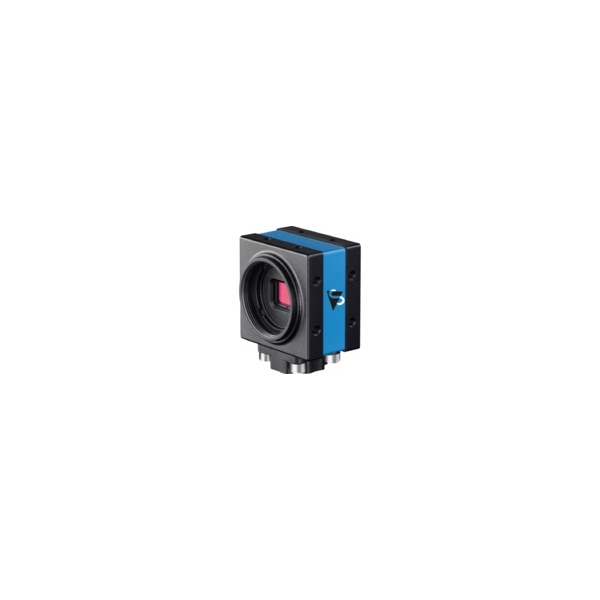

Camara USB3.0 mono - Iberoptics Machine Vision Camera

Industrial camera for artificial vision and industrial imaging The Imaging Source USB 3.0 monochrome (White and black).

These cameras are perfect for developing artificial vision or industrial imaging applications since they are compatible with numerous accessories such as C / CS mount lenses, protection housings, filters ...

Subject to change
General behavior
Dynamic range	8/12 bit
Video formats @ frame rate (maximum)	2,592x1,944 (5 MP) Y800 @ 15 fps 2,592x1,944 (5 MP) Y16 @ 7.5 fps
Interface (optical)
IR cut filter
Sensor type	CMOS
Sensor specification	Aptina MT9P031
Shutter	rolling
Format	¹/_2.5 inch
Pixel size	H: 2.2 µm, V: 2.2 µm
Lens mount	C/CS
Interface (electrical)
Interface	USB 3.0
Supply voltage	4.5 VDC to 5.5 VDC
Current consumption	approx 250 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 36 mm, W: 36 mm, L: 25 mm
Mass	70 g
Adjustments
Shutter	¹/_20,000 s to ¹/₄ s
Gain	0 dB to 12 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
