LED light sources, single-channel

More info
Accessories
Comments

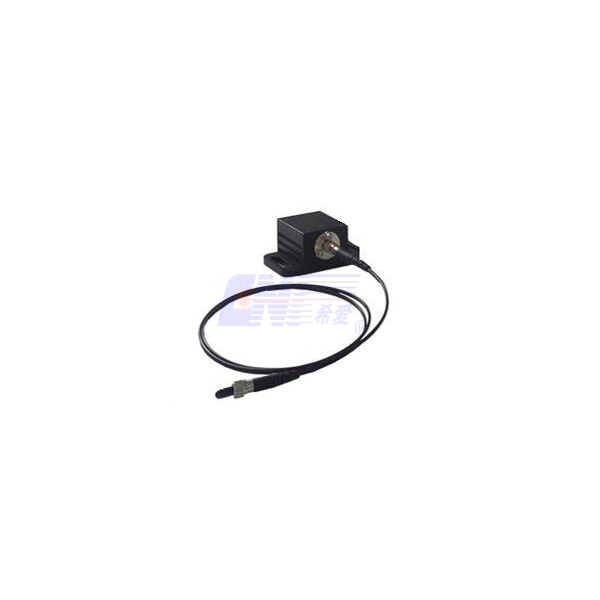

Fiber coupled LED sources, icnluding head and power supply-driver

These LED sources are single channel and include everything required: the head with the LED diode, fiber coupling and 600um, 0.22 NA multimode patchcord, plus power supply / driver.

Available models:

Nominal wavelength (nm)	Bandwidth FWHM (nm)	Fiber output (mW; Ф600um SMA)
375	9	3
395	16	4,5
405	12	4,2
430	15	3,8
460	25	6
470	20	3,2
500	30	2,2
530	33	3,2
565	104	3,1
600	15	1,2
620	15	5,5
625	17	2,2
660	20	4
730	37	2,3
808	25	3,6
850	25	3
880	50	1,7
940	30	2
1050	37	1,4
1550	102	1,1

1) this data is for reference. Values may vary with temperature or other parameters
2) power values for 600um core, 0.22 NA multimode fiber; other core fibers on request

Dimensiones:


Laser head 64 (L) ×46.5 (W) ×30 (H) mm³	Power supply of LED 114 (L) ×78 (W) ×71 (H) mm³

If you need a light source with several LED channels, for instance for microscopy applications, please check our Nji multicolor LED light engine.
