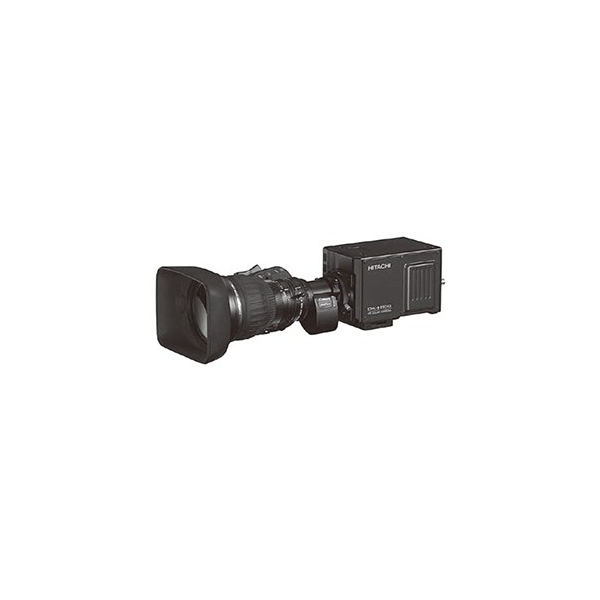

DK-Z50

 DK-Z50
CCD2/3" lT-3CCD
Total pixels
1.0 million pixels

Effective pixels-
Aspect ratio16:9 (HD/SD), 4:3 (SD) switchable
TV signal format1080/59.94i, 1080/50i, 480/59.94i, 576/50i
Horizontal resolution1100 TV lines800 TV lines
Standard sensitivity2000 Ix / F10 (1080/59.94i), 2000 Ix / F11 (1080/50i), 3200K, 89.9 reflectance
Minimum illumination0.002 lx (F1.4, +72dB) +72dB at +36dB Gain and CCD charge accumulation
S/N
Typical 58dB (HD-SDI output decode Y channel Band: 27.5MHz)

Lens mountBayonet mount
Optical filterClear, 1/4ND, 1/16ND, 1/64ND
ECC filter3200K, 4300K, 5600K, 6300K, 8000K
ShutterPRESET1/100, 1/250, 1/500, 1/1000, 1/2000 second (59.94i)
1/60, 1/250, 1/500, 1/1000, 1/2000 second (50i)
Lock Scan1/59.94 to 1/10000 second, 1.07 (+36dB) to 0.03 second (+6dB) (59394i)
1/50.00 to 1/10000 second, 1.28 (+36dB) to 0.04 second (+6dB) (50i)
Gain selectionL (low):-3/0dB M(medium): 0 to +33dB, 3dB steps
H(high): +3 to +36dB, 3dB steps
Dimensions (W x H x D)99 (W) x 105 (H) x 155 (D) mm (excluding protrusions)
Power consumptionapprox. 17 W (DC 12V)
Massapprox. 1.5 kg (3.3 lbs)
Input signalsGenlockTri-level sync / BB
Output signalsHD-SDI 2 outputHD-SDI: SMPTE292M 0.8Vp-p/1.5Gbps
HD-SDI: SMPTE259M-C 0.8Vp-p/270Mbps

Write your review

DK-Z50

DK-Z50

FULL HD
2/3" 3CCD
1080i, 480i, 576i
1080i (1920 x 1080)
99 x 105 x 155 mm
