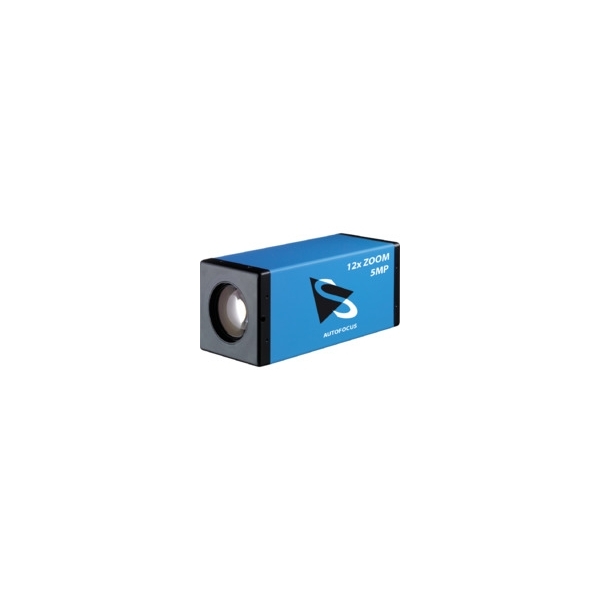

Camara zoom gige mono

Industrial camera with zoom for artificial vision and industrial image The Imaging Source GigE monochrome (White and black).

These cameras are perfect for developing artificial vision or industrial imaging applications since they are compatible with numerous accessories such as C / CS mount lenses, protection housings, filters ...

Subject to change
General behavior
Dynamic range	8/12 bit
Video formats @ frame rate (maximum)	2,592x1,944 (5 MP) RGB32 @ 15 fps 2,592x1,944 (5 MP) Y800 @ 15 fps 2,592x1,944 (5 MP) Y16 @ 15 fps
Interface (optical)
IR cut filter
Sensor type	CMOS
Sensor specification	Aptina MT9P031
Shutter	rolling
Format	¹/_2.5 inch
Pixel size	H: 2.2 µm, V: 2.2 µm
Focal length	4.8 mm (wide) to 57.6 mm (tele)
F-Stop	2.2 (wide) to 2.3 (tele)
MOD	3 cm (wide) to 70 cm (tele)
Focus	automatic and manual
Iris	automatic and manual
Lens	integrated
Interface (electrical)
Interface	GigE
Supply voltage	11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current consumption	approx 600 mA @ 12 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 50 mm, W: 50 mm, L: 103 mm
Mass	330 g
Adjustments
Shutter	¹/_20,000 s to 30 s
Gain	0 dB to 12 dB
White balance	-2 dB to 6 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

Check out our industrial imaging and computer vision products:

- Lenses (fixed focal, zoom, autofocus, telecentric, ...)
- Machine vision and industrial image cameras
- Lighting (line and pattern lasers, LEDs)
- Protection housings
- Multispectral and hyperspectral cameras
