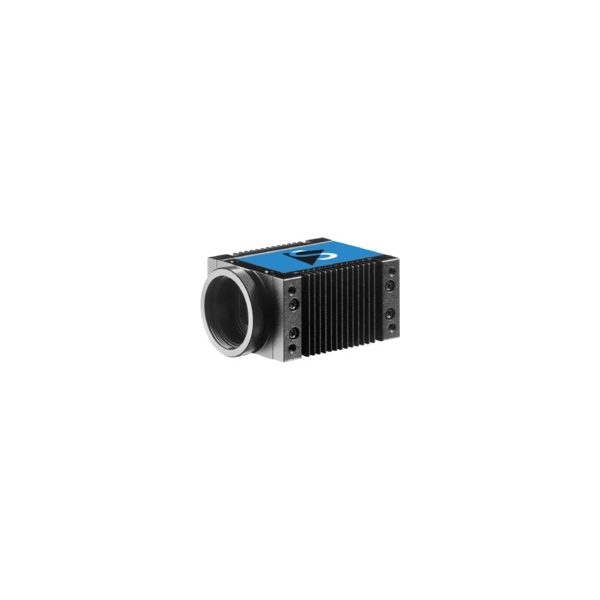

TIS-DMK-33GX174e

Industrial camera for artificial vision and industrial imaging The Imaging Source GigE monochrome (White and black).

These cameras are perfect for developing artificial vision or industrial imaging applications since they are compatible with numerous accessories such as C / CS mount lenses, protection housings, filters ...

Subject to change
General behavior
Vision standard
Dynamic range	12 bit
Resolution	1,920x1,200 (2.3 MP)
Frame rate	50 fps
Video output format	8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
Interface (optical)
IR cut filter
Sensor type	CMOS Pregius
Sensor specification	Sony IMX174LLJ
Shutter	global
Format	1/1.2 inch
Pixel size	H: 5.86 µm, V: 5.86 µm
Lens mount	C (CS optional)
Interface (electrical)
Interface	GigE
Supply voltage	11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current consumption	approx 400 mA @ 12 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 29 mm, W: 44 mm, L: 57 mm
Mass	120 g
Adjustments
Shutter	30 µs to 30 s
Gain	0 dB to 48 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
