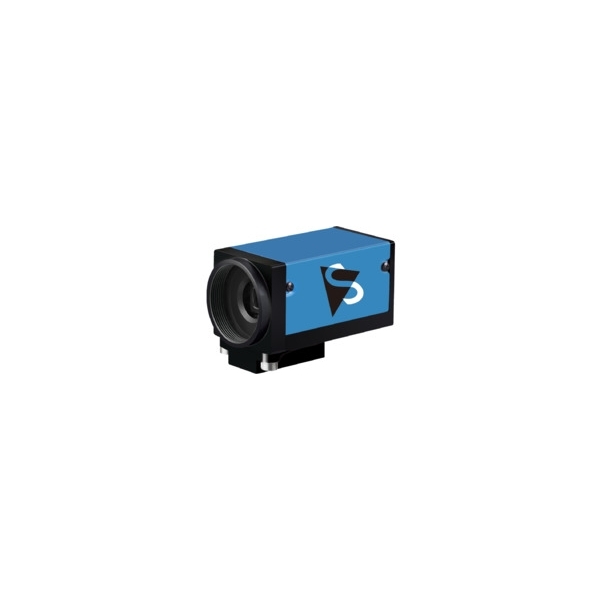

TIS-DFK-33GX226

Industrial camera for artificial vision and industrial imaging The Imaging Source GigE color.

These cameras are perfect for developing artificial vision or industrial imaging applications since they are compatible with numerous accessories such as C / CS mount lenses, protection housings, filters ...

Subject to change.
GENERAL BEHAVIOR
Vision standard
Dynamic range	12 bit
Resolution	4,000×3,000 (12 MP)
Frame rate	9 fps
Video output format	8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24
INTERFACE (OPTICAL)
IR cut filter
Sensor type	CMOS STARVIS
Sensor specification	IMX226CQJ
Shutter	rolling
Format	1/1.7 inch
Pixel size	H: 1.85 µm, V: 1.85 µm
Lens mount	C/CS
INTERFACE (ELECTRICAL)
Interface	GigE
Supply voltage	11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current consumption	approx 400 mA @ 12 VDC
Auto iris control
Trigger
I/Os
INTERFACE (MECHANICAL)
Dimensions	H: 29 mm, W: 29 mm, L: 57 mm
Mass	65 g
ADJUSTMENTS
Shutter	50 µs to 30 s
ENVIRONMENTAL
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
