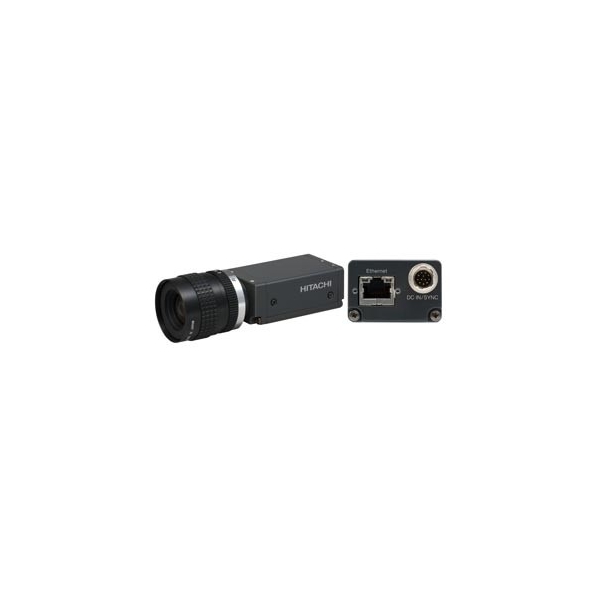

KP-FD33GV

Imaging device1/3-inch progressive scan interline CCD(With on chip micro lens )
 Total number of pixels692(H)×504(V)
Number of effective pixels656(H)×494(V)
Pixel size7.4 μm(H)×7.4 μm(V)(Square lattice)
Color filterRGB primary color mosaic filter
Sensing area4.88 mm(H)×3.66 mm(V)
Scanning systemProgressive
Sync systemInternal / External(Trigger)
Lens mountC mount
Flange focal distance17.526 mm
Video outputInterfaceGigabit Ethernet
ProtocolGigE Vision
Transfer rate1 Gbps
Image formatRGB 8 / 10 / 12 bit, YUV(4:2:2)8 / 10 / 12 bit, Mono 8 / 10 / 12 bit, Raw 8 / 10 / 12 bit
Image size640(H)×480(V)
Frame rate90 frames per second
Frame rate differs in formats following.
RGB 12bit: 85 frames per second
Sensitivity2000 lx, F4, 3200K
Electric shutter speedOFF / Auto (AES) / Manual (PRESET or VARIABLE), OFF is normal exposure (frame rate)
 PRESET1/90, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/50000 second
VARIABLEFrom 10 second to approx. 1/100000 second
External trigger shutterModeFixed shutter, One trigger, VD Sync, Reset control
InputVia Gigabit Ethernet cable (Software trigger), 12-pin connector (Hardware trigger)
Input level5 Vp-p±1 V
External sync signalVD output5 Vp-p±0.3 V
Strobe out5 Vp-p±0.3 V
Binning nodeOFF / ON
Partial scanGrabbing image area is adjustable at horizontal / vertical
ALC (Auto level control)Adjustable for video level
White balanceATW / MANUAL / One-push
GainAuto / Manual (0dB to 18dB)
GammaOFF(Γ=1)/LUT
Color masking6 color independent masking
Paint blackAdjustable
SharpnessAdjustable
Black levelAdjustable
KneeAdjustable
Power supplyDC+12V plus minus 1V (input from 12-pin connector), 48 V (PoE)
Power consumptionApprox. 3.8W / 315mA (@DC+12V)
Ambient temperature0 C°∼+40 C° / 30∼80%RH
 Operating10 C°∼+50 C° / 30∼80%RH
Storage20 C°∼+60 C° / 20∼90%RH
Vibration endurance68.65 m/s2 or less (10 to 200Hz, 30 minutes each on XYZ axes) (Do not subject to strong vibration for long periods of time.)
Shock endurance490.3 m/s2 or less (vertical, horizontal, once each face)
External dimensions44(W)×29(H)×72(D)mm(not including lens and protrusions)
MassApprox. 140g (without lens)

Write your review

KP-FD33GV

KP-FD33GV

1CCD Color(RGB/YUV/RAW), Progressive, 1/3 inch
No. of effective pixels:VGA(656(H) × 494(V))
Frame rate:90fps
External dimensions:44 × 29 × 72mm, Mass:140g, 24/30/36bit
