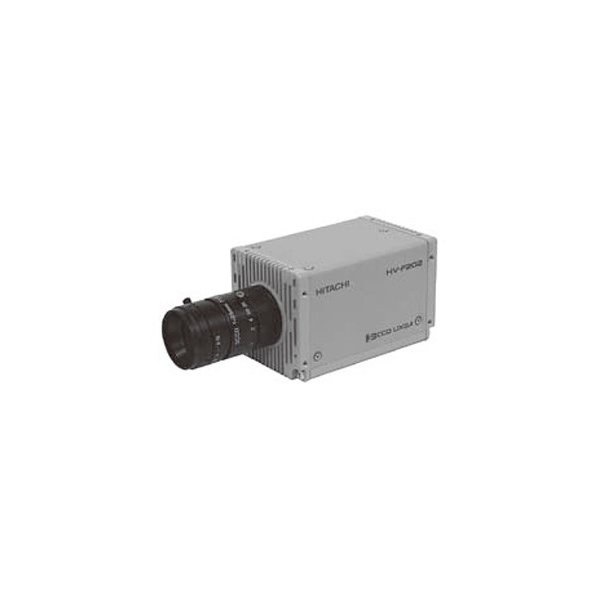

HV-F202GV

Imaging device1/1.8-inch progressive scan interline CCD (R, G, B 3 CCD)
 Effective pixels1600(H) x 1200(V)
 Pixel size4.4 μm(H) x 4.4 μm(V) (Square pixel)
 Optical system1/1.8-inch F1.8 prism
Scanning area7.04 mm(H) x 5.28 mm(V)
Scanning systemProgressive
Sync systemInternal / VD external
Lens mountC mount
Flange focal distance17.526 mm
Video outputGigabit Ethernet IEEE802.3ab (1000BASE-T)
GigaE Vision Support
GenICam Support
RGB (24 bit/30 bit/ 36 bit), RAW (24 bit/30 bit/ 36 bit), YUV (24 bit/30 bit/ 36 bit)
Flame rate
 Frame rate (frames per second)
24 bit30 bit36 bit
RGB18129
YUV281818
Sensitivity2000 lx, F5.6, 3200K (at 1/30 second shutter)
Electric shutter speedOFF / Auto(AES) / Manual (Variable)
 Variable1/30 to 1/100,000 second
 AES1/30 to 1/100,000 second
 Long time integration1/30 to approx. 4 second (1 frame step)
External trigger shutterModeFixed shutter, One trigger, VD sync reset
InputVia Gigabit Ethernet cable or DC IN/SYNC connector
Input level5 Vp-p ±0.5 V
External sync signal (Strobe out)VD output, Flash out
RegistrationFull Screen: 0.05% (except lens characteristics)
Vertical Sharpness2H
White balanceManual / One-push auto / Continuous auto
GainManual: 0 to +12 dB, AGC: 0 to +12 dB (with limit setting)
Gamma0.45 / 1.0 / LUT (Look up table: user customizable)
Color maskingOFF/ON (6 color independent masking)
SharpnessSharpness (DTL) level, Sharpness (DTL) width
Paint blackAdjustable
Black levelAdjustable
KneeAdjustable (Knee point and knee slope)
Power supplyDC+12 V ±1 V (from DC IN / SYNC connector), 48V (PoE)
Power consumptionApprox. 7.8 W (DC+12 V)
Ambient temperaturePerformance0 °C to +40 °C
Operating-10 °C to +40 °C (without dew condensation)
Storage-20 °C to +60 °C
Vibration endurance10 to 200 Hz 24.5 m/s2
Shock endurance392 m/s2
External dimensions55(W) x 55(H) x 89(D) mm (not including lens and protrusions)
MassApprox. 350 g (without lens)

Write your review

HV-F202GV

HV-F202GV

GigE (Gigabit Ethernet)
3CCD Color
1/1.8" 3CCD
UXGA (1600 x 1200)
30 fps
55 x 55 x 89 mm
