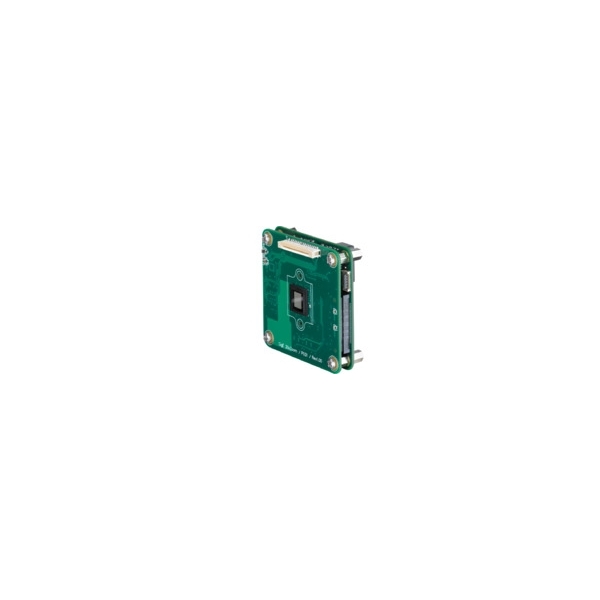

Camara tarjeta GigE color

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source GigE color

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change
General behavior
Sensitivity	0.05 lx
Dynamic range	8/12 bit
Video formats @ frame rate (maximum)	2,592x1,944 (5 MP) RGB32 @ 15 fps 2,592x1,944 (5 MP) Y800 @ 15 fps 2,592x1,944 (5 MP) Y16 @ 15 fps
Interface (optical)
IR cut filter
Sensor type	CMOS
Sensor specification	Aptina MT9P031
Shutter	rolling
Format	¹/_2.5 inch
Pixel size	H: 2.2 µm, V: 2.2 µm
Lens mount	M12x0.5
Interface (electrical)
Interface	GigE
Supply voltage	11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current consumption	approx 600 mA @ 12 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 45 mm, W: 45 mm, L: 20 mm
Mass	10 g
Adjustments
Shutter	¹/_20,000 s to 30 s
Gain	0 dB to 12 dB
White balance	-2 dB to 6 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

TIS-DFM-25GP031-ML
