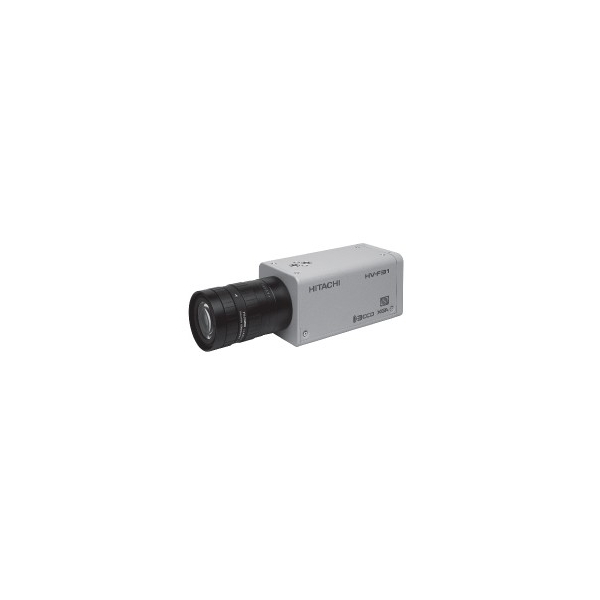

HV-31F

More info
Download
Comments

Imaging device		1/3-inch progressive scan interline CCD (R, G, B 3 CCD)
	Total number of pixels	1077 (H)×788 (V)
	No. of effective pixels	1024 (H)×768 (V)
	Pixel size	4.65 µm(H)×4.65 µm(V) (Square pixel)
	Optical system	1/3-inch F2.2 prism
Scanning area		4.76 mm(H)×3.53 mm(V)
Scanning system		Progressive
Sync system		Internal / external (HD/VD automatically switch)
Lens mount		C mount
Flange focal distance		17.526 mm
Video output	Interface	IEEE1394.a
	Cable	IEEE1394.a 6 pin bus powered type
	Transfer rate	400MHz
	Image format	RGB 24/48 bit, YUV 16 bit
	Image size	1024(H)×768(V), 800(H)×600(V)
	Frame rate	7.5 frames per second (RGB 24 bit, 1024×768)
Sensitivity		2000 lx, F5.6 (at 1/30 second shutter)
Electric shutter speed		Auto(AES) / Variable / Accumulate mode
	Variable	1/30 to 1/100,000 second
	AES	OFF to 1/100,000 second
	Accumulate	1/30 to 4 second (1 frame step)
External trigger shutter	Mode	Fixed shutter, One trigger
	Input	12-pin connector (Hardware trigger)
	Input level	Low: 0 V DC, High: 3 to 24 V DC
External sync signal (Strobe out)		5 Vp-p ±0.3 V
Screen distortion		All Screen: 0% (except lens characteristics)
Registration		All Screen: 0.05% (except lens characteristics)
Vertical Sharpness		2 H
White balance		ATW / MANUAL/ One-push
Gain		AGC (0 to +12 dB) or 1dB step
Gamma		0.45 / 1.0 (ON / OFF)
Color masking		OFF/ON(6 color independent masking)
Sharpness		Sharpness (DTL) level, Sharpness (DTL) width
Color bar		Full
Power supply		DC+12 V (10. 5 V to 15 V DC without ripple)
Power consumption		Approx. 8.0 W (DC+12 V)
Ambient temperature	Operating	0 °C to +40 °C
Ambient temperature	Storage	–20 °C to +60 °C
Vibration endurance		24.5 m/s² or less (10 to 200 Hz, 30 minutes each on XYZ axes) (Do not subject to strong vibration for long periods of time.)
Shock endurance		392 m/s² or less (vertical, horizontal, once each face)
External dimensions		65(W)×65(H)×130(D) mm (not including lens and protrusions)
Mass		Approx. 600 g (without lens)
