Camara tarjeta USB3.1 mono

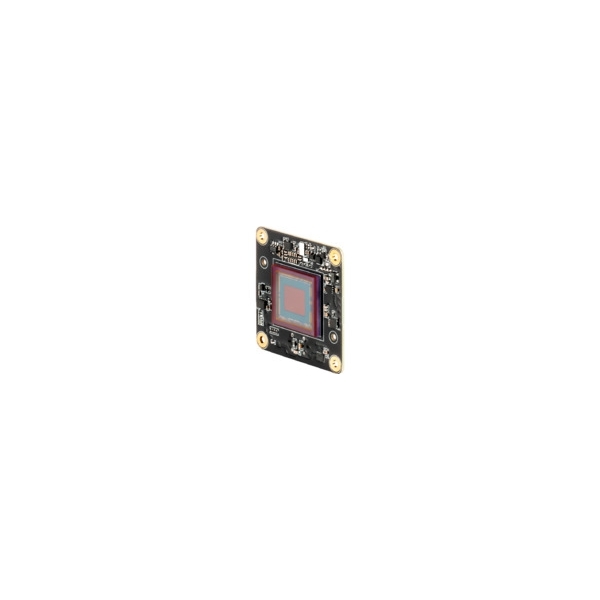

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 3.1 Monochrome (Black and white)

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change
General behavior
Vision standard
Dynamic range	12 bit
Resolution	2,048x1,536 (3.1 MP)
Frame rate	119 fps
Video output format	8-Bit Monochrome, 16-Bit Monochrome
Interface (optical)
IR cut filter
Sensor type	CMOS Pregius
Sensor specification	Sony IMX252LLR
Shutter	global
Format	¹/_1.8 inch
Pixel size	H: 3.45 µm, V: 3.45 µm
Lens mount	M12x0.5
Interface (electrical)
Interface	USB 3.1
Supply voltage	4.75 VDC to 5.25 VDC
Current consumption	approx 420 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 36 mm, W: 36 mm, L: 15 mm
Mass	7 g
Adjustments
Shutter	20 µs to 4 s
Gain	0 dB to 48 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

TIS-DMM-37UX252-ML
