Camara tarjeta USB3.1 color

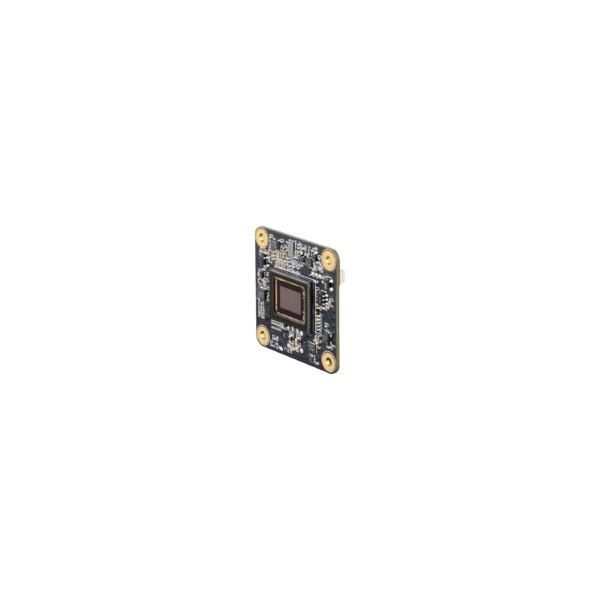

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 3.1 Monochrome (Black and white)

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change.
GENERAL BEHAVIOR
Vision standard
Dynamic range	12 bit
Resolution	4,000×3,000 (12 MP)
Frame rate	30 fps
Video output format	8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
INTERFACE (OPTICAL)
IR cut filter
Sensor type	CMOS STARVIS
Sensor specification	Sony IMX226CLJ
Shutter	rolling
Format	1/1.7 inch
Pixel size	H: 1.85 µm, V: 1.85 µm
Lens mount	M12x0.5
INTERFACE (ELECTRICAL)
Interface	USB 3.1
Supply voltage	4.75 VDC to 5.25 VDC
Current consumption	approx 320 mA @ 5 VDC
Auto iris control
Trigger
I/Os
INTERFACE (MECHANICAL)
Dimensions	H: 30 mm, W: 30 mm, L: 15 mm
Mass	7 g
ADJUSTMENTS
Shutter	50 µs to 30 s
ENVIRONMENTAL
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

TIS-DMM-37UX226-ML
