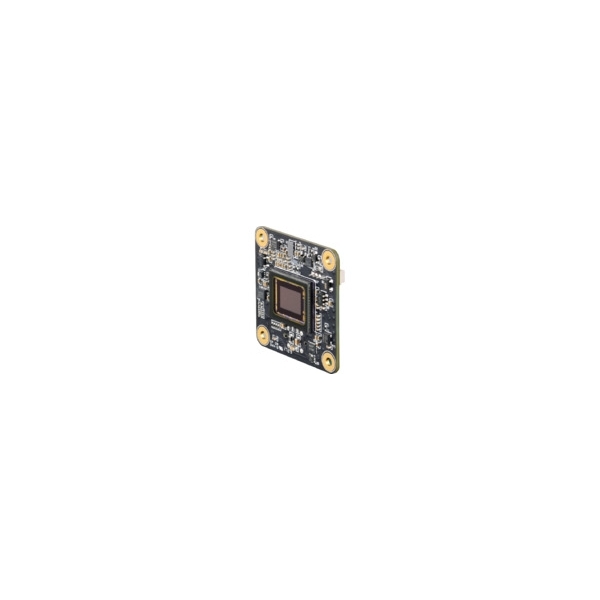

Camara tarjeta USB3.1 mono

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 3.1 Monochrome (Black and white)

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change
General behavior
Vision standard
Dynamic range	12 bit
Resolution	3,072x2,048 (6.3 MP)
Frame rate	60 fps
Video output format	8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
Interface (optical)
IR cut filter
Sensor type	CMOS STARVIS
Sensor specification	Sony IMX178LLJ
Shutter	rolling
Format	¹/_1.8 inch
Pixel size	H: 2.4 µm, V: 2.4 µm
Lens mount	M12x0.5
Interface (electrical)
Interface	USB 3.1
Supply voltage	4.75 VDC to 5.25 VDC
Current consumption	approx 320 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 30 mm, W: 30 mm, L: 15 mm
Mass	7 g
Adjustments
Shutter	20 µs to 60 s
Gain	0 dB to 48 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

TIS-DMM-37UX178-ML
