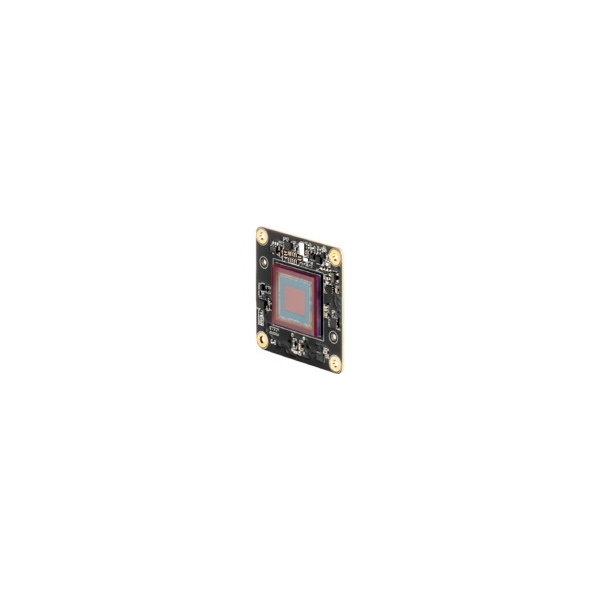

TIS-DFM-37UX252-ML

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 3.1 color

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change
General behavior
Vision standardUSB3 Vision is the interface standard for implementing the USB 3.0 interface in industrial machine vision.
Dynamic range12 bit
Resolution2,048x1,536 (3.1 MP)
Frame rate119 fps
Video output format8-Bit Bayer (RG), 16-Bit Bayer (RG)
Interface (optical)
IR cut filter
Sensor typeCMOS Pregius
Sensor specification Sony IMX252LQR
Shutterglobal
Format1/1.8 inch
Pixel sizeH: 3.45 µm, V: 3.45 µm
Lens mountM12x0.5
Interface (electrical)
InterfaceUSB 3.1
Supply voltage4.75 VDC to 5.25 VDC
Current consumptionapprox 420 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 36 mm, W: 36 mm, L: 15 mm
Mass7 g
Adjustments
Shutter20 µs to 4 s
Gain0 dB to 48 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

TIS-DFM-37UX252-ML

TIS-DFM-37UX252-ML

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 3.1 color
We are the official distributors of The Imaging Source in Spain and Portugal

  • 1/1.8 inch Sony CMOS Pregius sensor (IMX252LQR)
  • 2,048x1,536 (3.1 MP), up to 119 fps
  • Global shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows and Linux software included
