Camara tarjeta USB3.0 mono

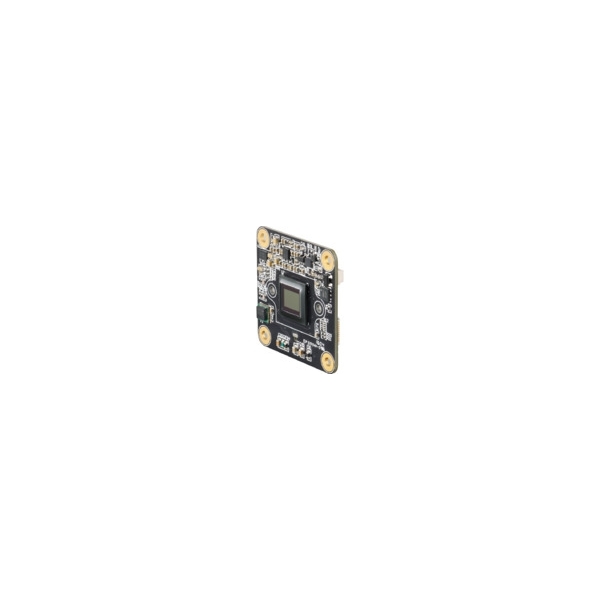

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 3.0 Monochrome (Black and white)

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change
General behavior
Dynamic range	8/12 bit
Video formats @ frame rate (maximum)	2,592x1,944 (5 MP) Y800 @ 15 fps 2,592x1,944 (5 MP) Y16 @ 7.5 fps
Interface (optical)
IR cut filter
Sensor type	CMOS
Sensor specification	Aptina MT9P031
Shutter	rolling
Format	¹/_2.5 inch
Pixel size	H: 2.2 µm, V: 2.2 µm
Lens mount	M12x0.5
Interface (electrical)
Interface	USB 3.0
Supply voltage	4.5 VDC to 5.5 VDC
Current consumption	approx 250 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 30 mm, W: 30 mm, L: 10 mm
Mass	15 g
Adjustments
Shutter	¹/_20,000 s to ¹/₄ s
Gain	0 dB to 12 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

TIS-DMM-27UP031-ML
