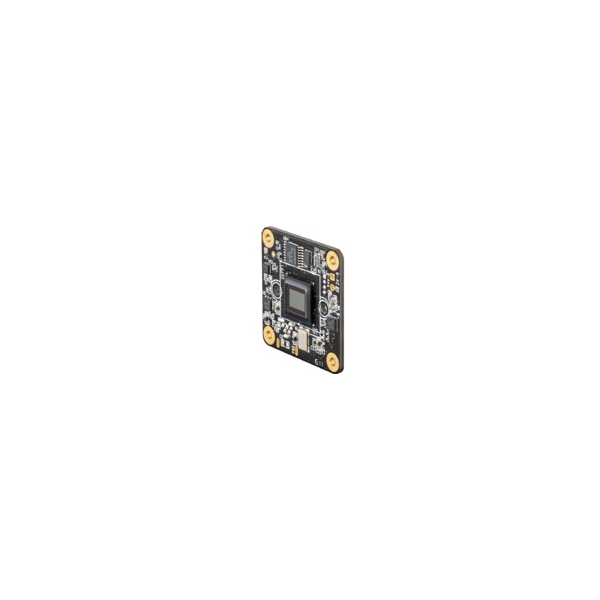

TIS-DMM-42BUC03-ML

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 2.0 Monochrome (Black and white)

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change
General behavior
Dynamic range8 bit
Video formats @ frame rate (maximum)1,280x960 (1.2 MP) Y800 @ 25 fps
1,280x960 (1.2 MP) RGB24 @ 25 fps
Interface (optical)
IR cut filter
Sensor typeCMOS
Sensor specification Micron MT9M021
Shutterglobal
Format1/3 inch
Pixel sizeH: 3.75 µm, V: 3.75 µm
Lens mountM12x0.5
Interface (electrical)
InterfaceUSB 2.0 (forwards compatible)
Supply voltage4.5 VDC to 5.5 VDC
Current consumptionapprox 250 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 30 mm, W: 30 mm, L: 15 mm
Mass7 g
Adjustments
Shutter1/10,000 s to 1/4 s
Gain0 dB to 18 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

TIS-DMM-42BUC03-ML

TIS-DMM-42BUC03-ML

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 2.0 Monochrome (Black and white)

We are the official distributors of The Imaging Source in Spain and Portugal

  • 1/3 inch Micron CMOS sensor (MT9M021)
  • 1,280x960 (1.2 MP), up to 25 fps
  • Global shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows software included
