Camara tarjeta USB2.0 color

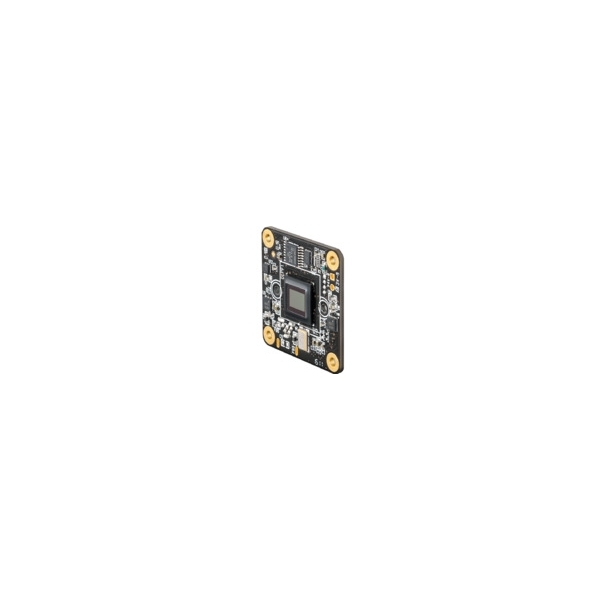

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 2.0 color

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change
General behavior
Dynamic range	8 bit
Video formats @ frame rate (maximum)	2,592x1,944 (5 MP) Y800 @ 6 fps 2,592x1,944 (5 MP) RGB32 @ 6 fps
Interface (optical)
IR cut filter
Sensor type	CMOS
Sensor specification	ON Semiconductor MT9P006
Shutter	rolling
Format	¹/_2.5 inch
Pixel size	H: 2.2 µm, V: 2.2 µm
Lens mount	M12x0.5
Interface (electrical)
Interface	USB 2.0 (forwards compatible)
Supply voltage	4.5 VDC to 5.5 VDC
Current consumption	approx 250 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 30 mm, W: 30 mm, L: 15 mm
Mass	7 g
Adjustments
Shutter	¹/_10,000 s to 30 s
Gain	0 dB to 18 dB
White balance	-6 dB to 6 dB
Environmental
Temperature (operating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

TIS-DFM-72BUC02-ML
